ROHM Semiconductor BM624xFS 3-Phase Fan Motor Drivers

ROHM Semiconductor BM624xFS 3-Phase Fan Motor Drivers are brushless drivers that come with a built-in 600V PrestoMOSFET™ as the output transistor. This motor driver features bootstrap operation by floating high side driver that includes the diode. The BM624xFS motor driver incorporates built-in protection circuits for overcurrent, overheating, under-voltage lockout, and external fault input. These motor drivers provide an optimum motor drive system for a wide variety of applications by combination with BD6201x controllers and enable motor unit standardization. Typical applications include air conditioners, air purifiers, water pumps, dishwashers, and washing machines.

Features

Protection circuits provided:
- Over-Current Protection (OCP)
- Thermal Shutdown protection (TSD)
- Under Voltage Lockout protection (UVLO)
- External fault input
Adopts built-in PrestoMOSFET as the output transistor

Bootstrap operation by floating high side driver that includes diode
Open drain fault output

Specifications

600V output MOSFET voltage
±1.5A (maximum) driver output current (DC)
2.7Ω (typical) output MOSFET DC ON resistance

180° sinusoidal drive type
150°C (maximum) junction temperature
SSOP-A54_23 package with 22mm x 14.1mm x 2.4mm dimensions

ROHM Semiconductor BM624xFS 3-Phase Fan Motor Drivers

Features

Specifications

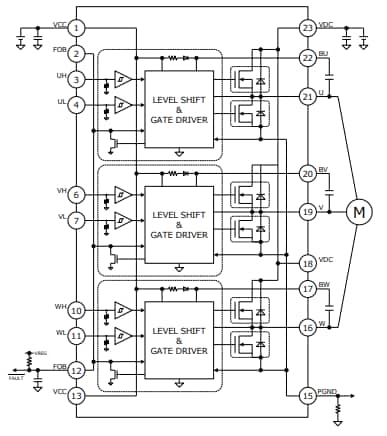

Block Diagram

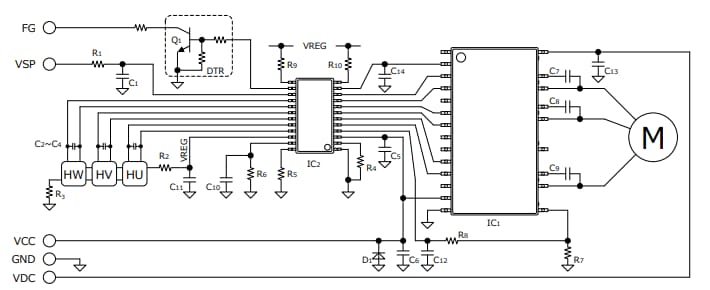

Application Circuit Diagram
