ROHM Semiconductor BM2SC123FP2-EVK-001 Reference Board

ROHM Semiconductor BM2SC123FP2-EVK-001 Reference Board is a demonstration and development platform for the BM2SC12xFP2-LBZ AC-DC Converter. The BM2SC12xFP2-LBZ is a quasi-resonant AC-DC converter with an integrated 1700V SiC MOSFET. The BM2SC12xFP2-LBZ is optimized for industrial applications focusing on auxiliary power supplies for street lamps, commercial air-conditioning systems, general-purpose inverters, and AC servos drives.

The ROHM Semiconductor BM2SC123FP2-EVK-001 provides a reference design for an isolation fly-back converter based on the BM2SC123FP2-LBZ AC-DC Converter. The Reference Board delivers power up to 48W at 400V_AC without any heatsink. The test result of the Reference Board demonstrates that the 24V output voltage is constant and independent from the input voltage.

Features

BM2SC123FP2-LBZ AC-DC Converter with an Integrated 1700V SiC MOSFET in a TO263-7L package
300V to 900V DC input voltage range
210V to 480V AC input voltage range
50Hz/60Hz input AC frequency
24V typical output voltage

48W maximum output power
0.0A to 2.0A output current range
310mW standby power
91% efficiency
200mVpp output ripple voltage
-10°C to +65°C operating temperature range

Required Equipment

3-phase AC power supply 210V to 480V, or DC power supply 300V to 900V, 80W or higher
2.0A electronic load
DC voltage meter

ROHM Semiconductor BM2SC123FP2-EVK-001 Reference Board

Features

Required Equipment

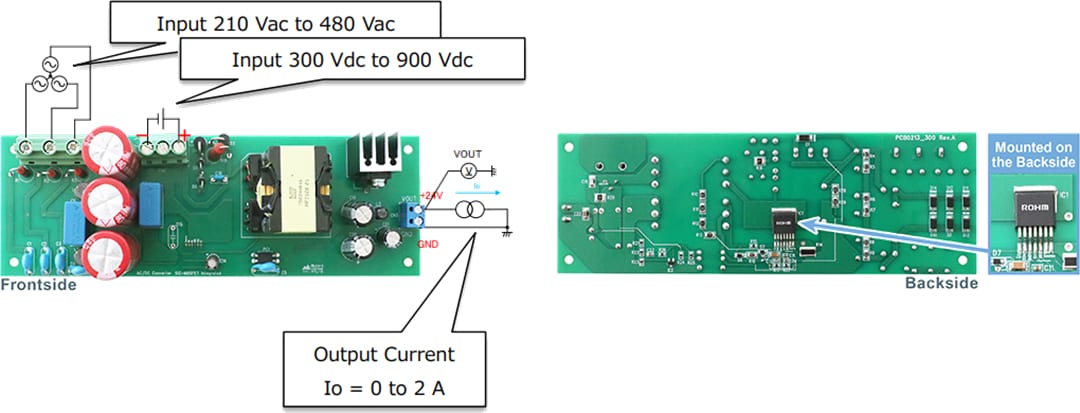

Board Layout
