ROHM Semiconductor BD79104FV-LA A/D Converter

ROHM Semiconductor BD79104FV-LA A/D Converter is a 12-bit 8-channel successive approximation converter with 0.5MSPS to 1MSPS sampling rate range. This converter features output code in straight binary format, single-ended input, a serial interface compatible with SPI/QSPI/MICROWIRE, and low power consumption. The BD79104FV-LA converter operates within the -40°C to 125°C temperature range and is available in a small SSOP-B16 package. This converter is used in data acquisition systems, motor control systems, instrumentation, and industrial equipment.

Features

0.5MSPS to 1MSPS sampling rate range
Output code in straight binary format
Single-ended input
Serial interface compatible with SPI/QSPI/MICROWIRE

Low power consumption
Available in 5mm x 6.4mm x 1.35mm dimensions and SSOP-B16 package

Specifications

2.70V to 5.25V supply voltage range (V_DD)
1.65V to 5.25V supply voltage range (I_OVDD)

-40°C to 125°C operating temperature range
10MHz to 20MHz clock frequency range

Applications

Industrial equipment
Data acquisition systems

Instrumentation and control systems
Motor control systems

ROHM Semiconductor BD79104FV-LA A/D Converter

Features

Specifications

Applications

Application Circuit Diagram

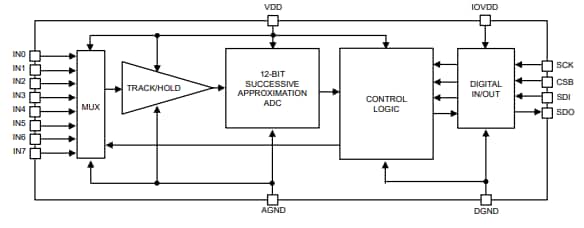

Block Diagram
