ROHM Semiconductor BD63910MUV Stepper Motor Driver

ROHM Semiconductor BD63910MUV Stepper Motor Driver is a bipolar low consumption driver that is driven by a PWM current. This motor driver operates at 36V rated supply voltage and 1A rated output current. The BD63910MUV motor driver adopts CLK-IN and PARA-IN driving mode for the input interface. This motor driver includes full (two kinds)-, half (three kinds)-, quarter (two kinds)-, 1/8-, and 1/16-step modes. The BD63910MUV motor driver features the current decay mode switch with the linearly variable FAST/SLOW DECAY ratio. This motor driver incorporates the normal rotation and reverse rotation switching functions. Typical applications include PPC, multi-function printer, laser beam printer, ink-jet printer, monitoring camera, WEB camera, sewing machine, photo printer, FAX, scanner, and mini printer.

Features

Bipolar low-consumption driver
Driven by PWM current
Low ON resistance DMOS output
CLK-IN and PARA-IN drive mode
Built-in spike noise cancel function
Full (two kinds)-, half (three kinds)-, quarter (two kinds)-, 1/8-, and 1/16-step modes
Freely timing excitation mode switch
Current decay mode switch with linearly variable FAST/SLOW DECAY ratio
Normal rotation and reverse rotation switching
Power save function

Built-in logic input pull-down resistor
Power-on reset function
Thermal Shutdown circuit (TSD)
Over-Current Protection circuit（OCP)
Under-Voltage Lockout circuit (UVLO)
Over-Voltage Lockout circuit (OVLO)
Ghost supply prevention that protects against malfunction when the power supply is disconnected
Adjacent pins short protection
Microminiature, ultra-thin, and high heat-radiation (exposed metal type) package

Specifications

8V to 28V supply voltage range
36V V_CC (maximum)
1A rated output current (continuous)

1.5A rated output current (peak)
1.3Ω output ON resistance (total of upper and lower resistors)
VQFN028V5050 package with 5mm x 5mm x 1mm dimensions

Specifications

PPC, multi-function printer, laser beam printer, and ink-jet printer
Monitoring camera and WEB camera
Sewing machine

Photo printer, FAX, scanner, and mini printer
Toy and robot

ROHM Semiconductor BD63910MUV Stepper Motor Driver

Features

Specifications

Specifications

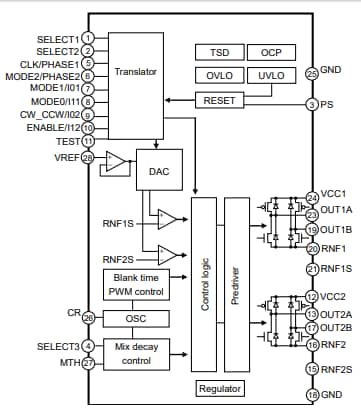

Block Diagram

Application Circuit Diagram
