ROHM Semiconductor BD63800MUF-EVK-002 Evaluation Kit

ROHM Semiconductor BD63800MUF-EVK-002 Evaluation Kit is based on the BD63800MUF-C AEC-Q100 automotive-qualified bipolar low-consumption stepping motor driver. The BD63800MUF-C is suitable for automotive applications such as head-up display, LED headlight, heat pump, and intake air control valve. The BD63800MUF-EVK-002 Evaluation Kit can be coupled with a GUI provided by ROHM for easy SPI register configuration. The evaluation kit enables the performance evaluation of the BD63800MUF-C in research and development laboratories.

Features

Plug and play stepping motor evaluation kit
Graphical User Interface application software
- Easy to set/read register
- Windows10 Operating System

External switches for pin setting
- Open or high settings
Test pins for easy signal monitoring

Kit Contents

BD63800MUF-C evaluation board [BD63800MUF-EVK-002]
USB cable (USB2.0 A-Male to C-Male)

BD63800MUF-C GUI control software (MS Windows)
USB Driver

Required Equipment

PC with operating system Windows 10 or higher
12V (typ.)/1.5A (min.) and 5V/100mA (min.) Laboratory DC power supplies
Load (e.g. Bipolar DC step motor)

Connecting cables between DC power supply and boards
Input 5V to 0V clock signal for CLK pin clock generator (optional)

ROHM Semiconductor BD63800MUF-EVK-002 Evaluation Kit

Features

Kit Contents

Required Equipment

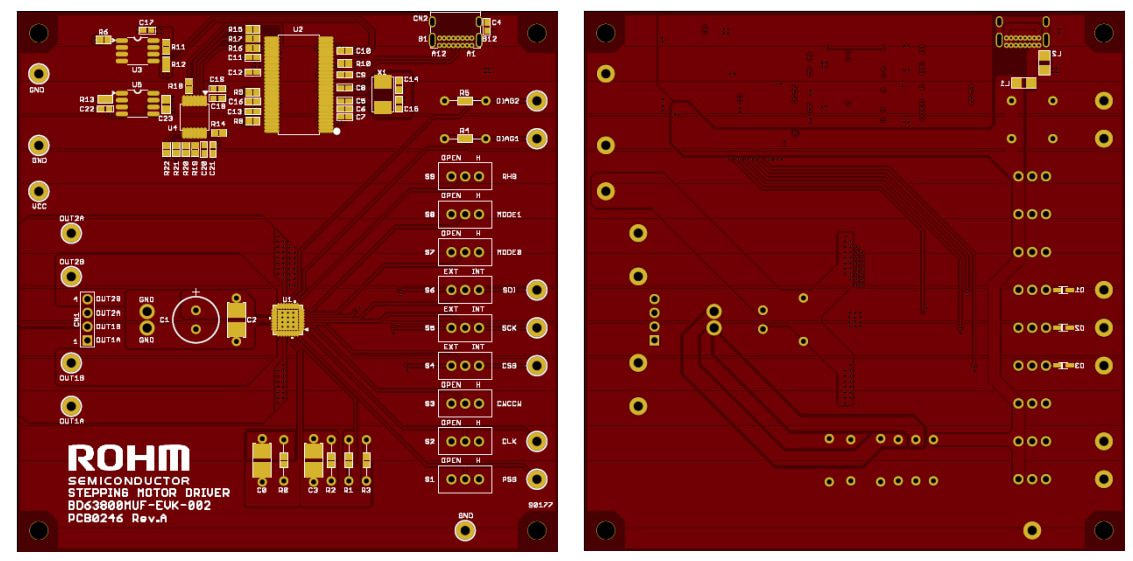

PCB with Pads & Silkscreen
