ROHM Semiconductor BD2311NVX-LB Gate Driver

ROHM Semiconductor BD2311NVX-LB Gate Driver is a single-channel ultra-fast driver for driving GaN devices. This gate driver can drive GaN HEMTs and operates at a 7A output current in a small 6-pin SON package. The BD2311NVX-LB gate driver operates at a 4.5V to 5.5V voltage range and 7A/5A typical output current. This gate driver features an Undervoltage Lockout (UVLO) between VCC and GND as a protection function. The BD2311NVX-LB gate driver is ideal for industrial equipment, industrial LiDAR, DC/DC converters, industrial detection sensors, and augmented reality.

Features

  • 4.5V to 5.5V Gate driver voltage range
  • 1.25ns (220pF Load) Minimum input pulse width
  • 0.65ns (220pF Load) Typical rise time
  • 0.70ns (220pF Load) Typical fall time
  • Built-in Undervoltage Lockout (UVLO) between VCC and GND
  • Inverting and non-inverting inputs
  • Small package SSON06RX2020

Specifications

  • 7A/5A (typical) Output current IOH / IOL
  • 3.4ns/3.0ns (typical) Turn-on/turn-off delay time
  • -40°C to 125°C Operating temperature range

Applications

  • Industrial equipment
  • Industrial LiDAR
  • DC/DC converters
  • Industrial detection sensors
  • Augmented reality

Block Diagram

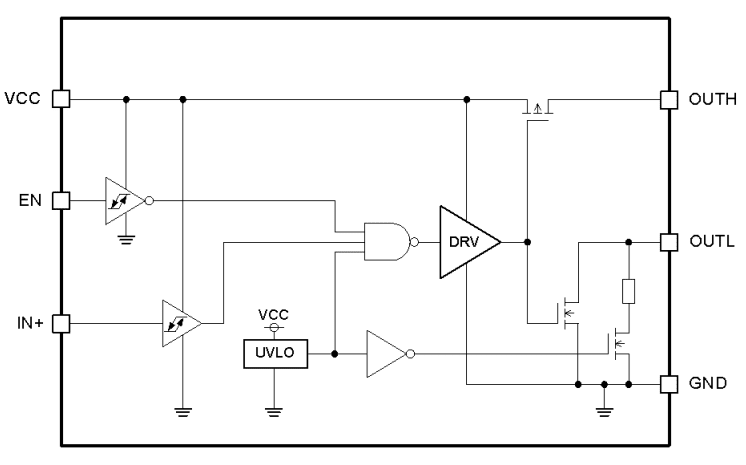

Block Diagram - ROHM Semiconductor BD2311NVX-LB Gate Driver

Typical Application Diagram

Application Circuit Diagram - ROHM Semiconductor BD2311NVX-LB Gate Driver

Mechanical Drawing

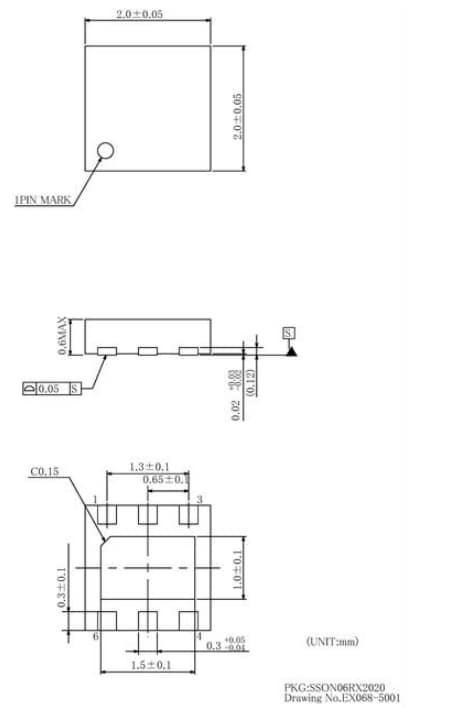

Mechanical Drawing - ROHM Semiconductor BD2311NVX-LB Gate Driver
