ROHM Semiconductor BD18353EFV-M 1ch High Current LED Controller

ROHM Semiconductor BD18353x Series 1ch High Current LED Controller is an AEC-Q100 qualified device featuring a built-in high side current detection amplifier. This LED controller features two systems of built-in analog dimming, Over Voltage Protection (OVP), and Short Circuit Protection (SCP). The PWM dimming can be set free with a built-in PWM generation circuit. This LED controller operates at the 5V to 65V input voltage range and -40°C to 125°C temperature range. The BD18353EFV-M 1ch high current LED controller is ideal for automotive exterior lamps.

Features

AEC-Q100 qualified (Grade 1)
Rail-to-rail current sense amplifier
PWM dimming signal generator
Over Voltage Protection (OVP)
Short Circuit Protection (SCP)

Analog dimming (two systems)
DRL mode (100% duty) enable
Outputs abnormal LED status (FAULT_B)
Spread Spectrum Frequency Modulation ON/OFF (SSFM_B)

Specifications

-40°C to 125°C operating temperature range
5V to 65V input voltage range
±3% LED current sense voltage accuracy

65V maximum output voltage
200kHz to 2.5MHz frequency switching range

Applications

Automotive exterior lamps:
- Rear, turn, DRL/position, fog, high, and low beam

ROHM Semiconductor BD18353EFV-M 1ch High Current LED Controller

Features

Specifications

Applications

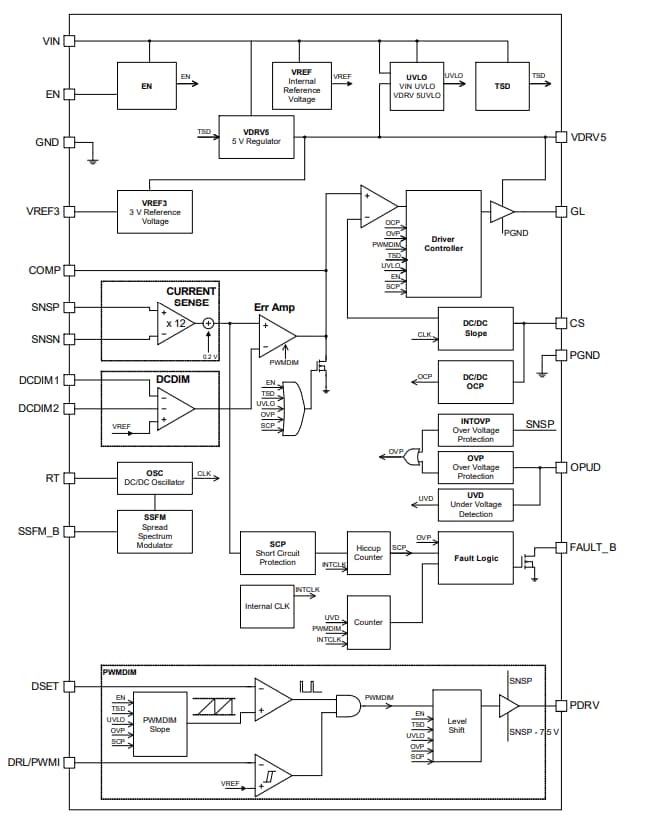

Block Diagram

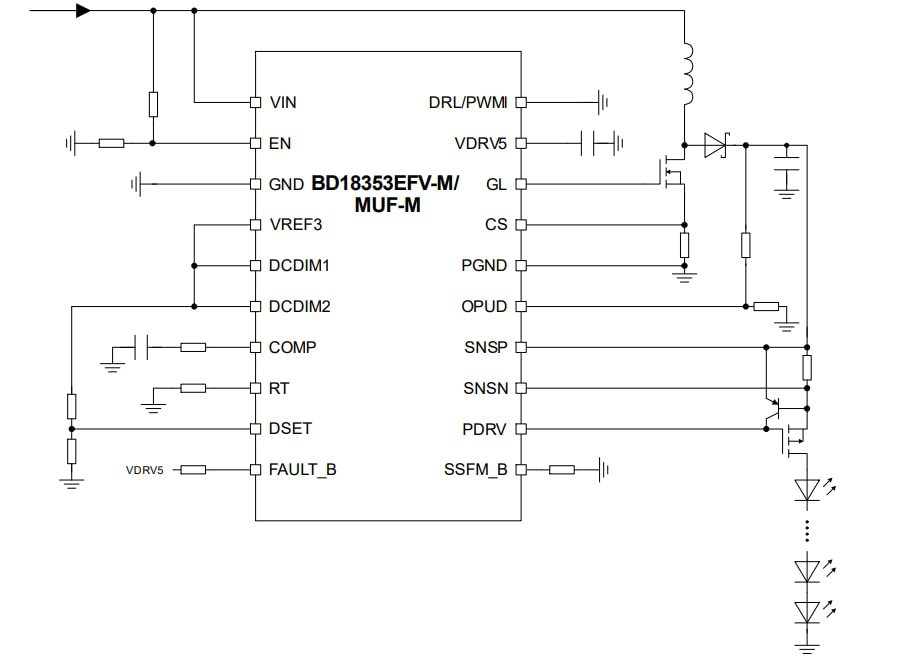

Application Circuit Diagram
