ROHM Semiconductor BD00IA5MHFV-M Automotive Variable Output LDO

ROHM Semiconductor BD00IA5MHFV-M Automotive Variable Output LDO is an AEC-Q100 qualified Low Dropout Regulator with a 0.5A output current. The output voltage can be varied from 0.8V to 4.5V using external resistors. Over-current protection is provided to protect the device from short circuits, and thermal shutdown protects the IC from heat destruction by an overload condition. An integrated circuit current ON/OFF switch sets the circuit to 0μA at shutdown mode.

The BD00IA5MHFV-M LDO Regulator is available in a space-saving, heat-resistant HVSOF6 package.

Features

AEC-Q100 qualified (Grade2)
High accuracy reference voltage circuit
Built-in overcurrent protection circuit (OCP)
Built-in thermal shut down circuit (TSD)
Integrated shutdown switch

2.4V to 5.5V input voltage (V_IN)
0.8V to 4.5V output voltage (V_OUT)
±3.0% voltage output accuracy
-40°C to +105°C operating temperature range
HVSOF6 package, (1.60mm x 3.00mm x 0.75mm)

Applications

Automotive (Body)

ROHM Semiconductor BD00IA5MHFV-M Automotive Variable Output LDO

Features

Applications

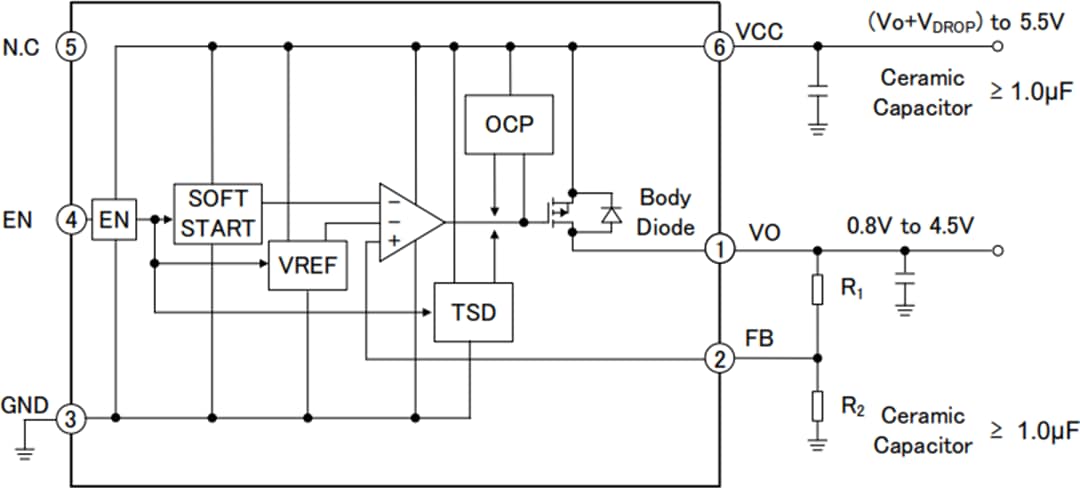

Block Diagram

Typical Application Circuit
