ROHM Semiconductor 125°C I2C BUS EEPROMs for 2-Wire Automotive

ROHM Semiconductor 125°C I²C BUS EEPROMs for 2-Wire Automotive are AEC-Q100 qualified. The ROHM I²C BUS EEPROMs feature two ports of Serial Clock (SCL) and Serial Data (SDA) that all controls are available through. The EEPROMs operate from a wide limit of 1.7V to 5.5V, with a possible 1MHz operation.

The I²C BUS EEPROMs offer a low current consumption, a page write mode of 32Byte/64Byte, and a bit format of 8K x 8bit / 16K x 8bit. The 125°C I²C BUS EEPROMs are available in SOP8, SOP-J8, TSSOP-B8, MSOP8, and VSON008X2030 packages with an ambient operating temperature of -40°C to +125°C.

Features

AEC-Q100 qualified
All controls available by 2 ports of Serial Clock (SCL) and Serial Data (SDA)
1.7V to 5.5V Wide limit of operating voltage, possible 1MHz operation
Page write mode 32Byte/64Byte
Bit format 8K x 8bit / 16K x 8bit
Low current consumption
Prevention of miswriting
- WP (Write Protect) function added
- Prevention of miswriting at low voltage

Noise filter built in SCL/SDA pin
Initial delivery state FFh
Packages
- 5.0mm x 6.2mm x 1.71mm SOP8
- 4.9mm x 6.0 mm x 1.65mm SOP-J8
- 3.0mm x 6.4mm x 1.2mm TSSOP-B8
- 2.9mm x 4.0mm x 0.9mm MSOP8
- 2.0mm x 3.0mm x 0.6mm VSON008X2030

Applications

Automotive camera
Automotive electronics

Specifications

3.5ms (Max) Write cycle time
1.7V to 5.5V Supply voltage
Write cycles
- 4 Million times (T_a = 25°C)
- 1.2 Million times (T_a = 85°C)
- 0.5 Million times (T_a = 105°C)
- 0.3 Million times (T_a = 125°C)

Data retention
- 100 Years (T_a = 25°C)
- 60 Years (T_a = 105°C)
- 50 Years (T_a = 125°C)
-40°C to +125°C Ambient operating temperature

ROHM Semiconductor 125°C I2C BUS EEPROMs for 2-Wire Automotive

Features

Applications

Specifications

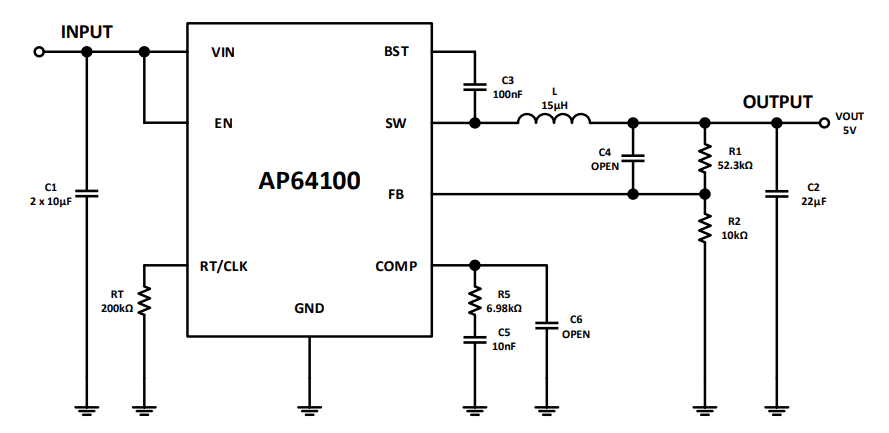

Typical Application Circuit

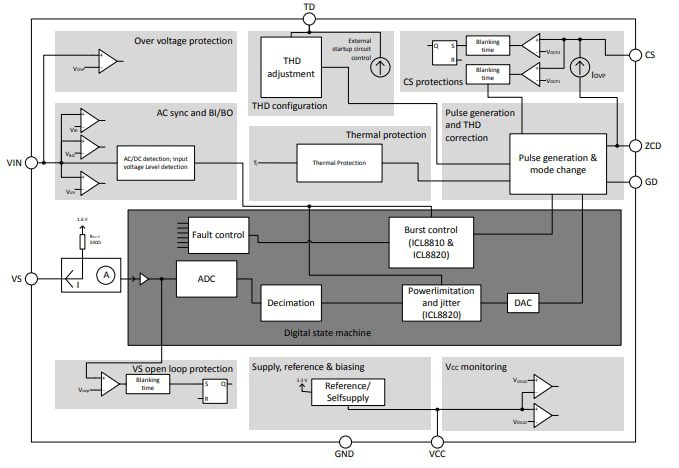

Block Diagram
