Riverdi EVE4 High Brightness TFT Display Modules

Riverdi EVE4 High Brightness TFT Display Modules introduce the fourth generation of Embedded Video Engine (EVE) technology, based on the Bridgetek BT817Q graphic controller. The EVE4 Modules offer several optical advantages in terms of angles, colors, and high brightness – all of them 1000 candelas.

The Riverdi EVE4 High Brightness TFT Display Modules are offered in 3.5″, 4.3″, 5.0″, and 7.0″ options and capacitive, resistive, or no touchscreen.

The displays have 1000 candelas which allow them to work outdoors and still have relatively high readability. Additionally, IPS displays are easily used in both commercial and industrial applications, indoors and outdoors.

Features

Low noise
Built-in Flash memory
Audio amplifier to generate sounds from Bridgetek’s BT817Q
SPI and QSPI interface options for the host

RiBus 20-pin standard connector allowing one board that can be used in several devices with different display sizes
Non-square pixel algorithm

Specifications

320px x 240px resolution 3.5″ TFT display
480px x 272px resolution 4.3″ TFT display
800px x 480px resolution 5.0″ TFT display
1024px x 600px resolution 7.0″ TFT display
High brightness 800cd to 1000cd/m²
Full viewing angles (IPS)

BT817Q graphics controller
QSPI/SPI interface
Optical bonding (some models)
Industrial projected capacitive touch screen (some models)
Black decorative cover glass (some models)

Applications

Industrial spaces
- Production halls
- Factories
External devices
- Vending machines
- Parking meters
- Ticket machines
- Access gates

Medical
Military use
- Pass military certifications
- Tactical radio

Riverdi EVE4 High Brightness TFT Display Modules

Features

Specifications

Applications

BT817Q Block diagram

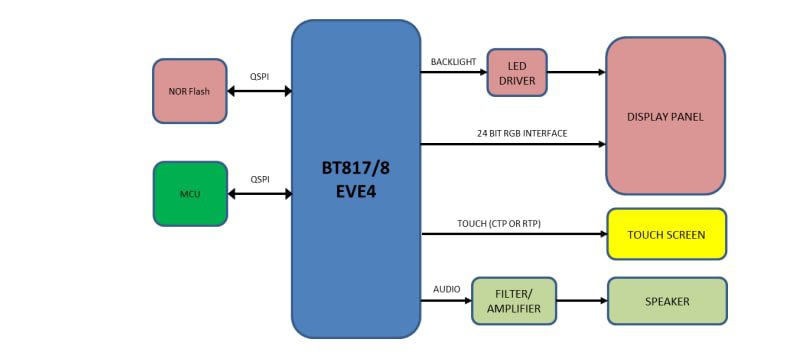

EVE4 Block Diagram
