Riverdi 7″ & 10.1″ High Brightness (HB) IPS Displays

Riverdi 7″ and 10.1″ High Brightness (HB) IPS Displays are high-resolution and high-brightness TFT displays with Low-Voltage Differential Signaling (LVDS) or Red Green Blue (RGB) interfaces. These displays incorporate typical surface luminance of up to 1000cd/m² and industrial projected capacitive touch panels with black decorative cover glass. This makes the full viewing angles (IPS) allow the user to interact with the display in a natural and intuitive way from every side. Typical applications include Human Machine Interface (HMI), IoT control, medical devices, laboratory devices, information kiosks, Point of Sale (POS), vending machines, charging stations, and elevator cabins.

Specifications

Dimensions:
- 7.0″ – 181.6mm × 100.6mm × 8.68mm
- 10.1″ – 246.66mm × 151.3mm × 7.5mm
Interfaces:
- LVDS
- RGB
Resolution:
- 7.0″ – 1024×600
- 10.1″ – 1280×800

Brightness:
- 7.0″ – 800cd/m²
- 10.1″ – 1000cd/m²
Full angle viewing direction
-20°C to 70°C operating temperature range
LCD type:
- IPS, normally black, transmissive, and TFT
Both with frame and without frame mounting options available
RGB vertical stripe pixel arrangement
Anti-glare surface treatment

Applications

Information kiosks
Point of sale
IoT control
Medical devices
Laboratory devices

Vending machines
Charging stations
Elevator cabins
Human Machine Interface (HMI)

Riverdi 7″ & 10.1″ High Brightness (HB) IPS Displays

Specifications

Applications

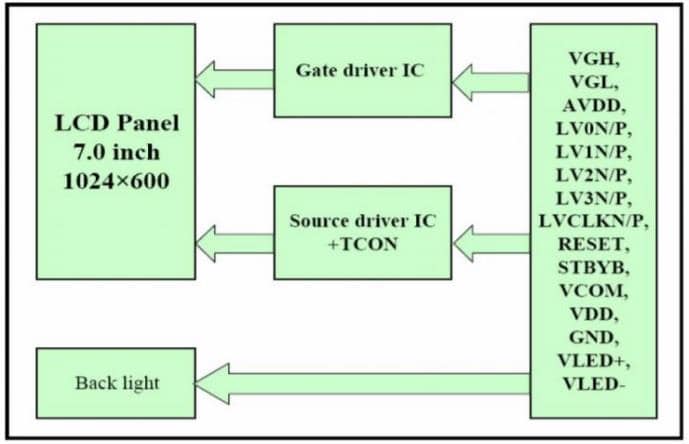

Block Diagram – 7″ Display
