Renesas Electronics SLG59H1401C High Voltage GreenFET Load Switches

Renesas Electronics SLG59H1401C High Voltage GreenFET Load Switches are used for OR’ing or manual Power MUX applications. The Renesas Electronics SLG59H1401C features two 3A-rated load switches, ideal for systems with multiple power sources. The device automatically detects and transitions between inputs while also allowing manual switching between two power rails.

Features

2x 3A load switches with common output
2x integrated VGS charge pumps
2.8V to 6V wide operating range
Adjustable output soft-start time (SS)
52mΩ (typical) low R_DSON
Adjustable priority (accuracy < ±5%)

Adjustable overvoltage protection (accuracy < ±5%)
Channel status indication (ST)
Undervoltage lockout
True reverse-current blocking
Protected by thermal shutdown and adjustable current limit

Applications

True Wireless Stereo (TWS) earbud charger cradles
Matter-ready Wi-Fi sensor solutions
Single-board computer gateways
Power-rail switching
Multifunction printers

Large-format copiers
Telecommunications equipment
High-performance computing 5V point of load power distribution
Motor drives

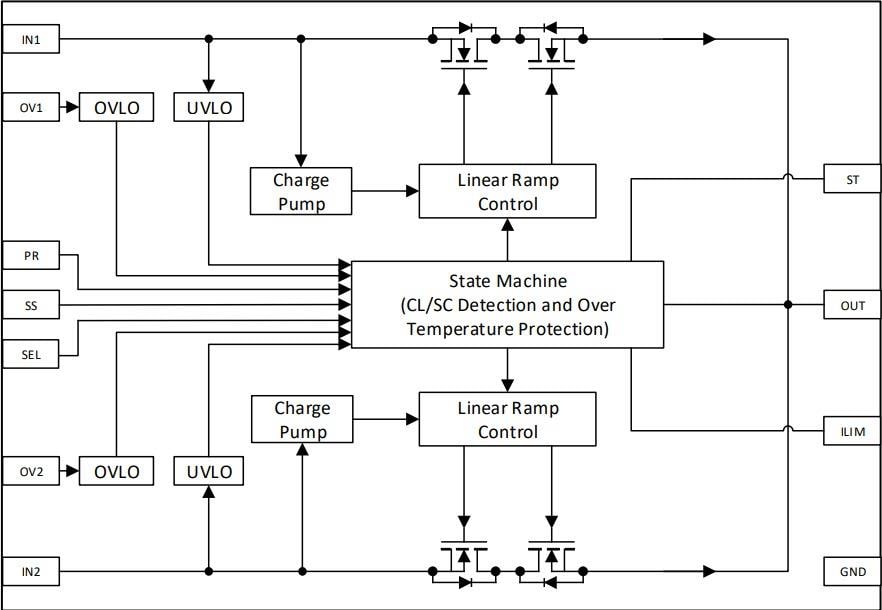

Block Diagram

Block Diagram - Renesas Electronics SLG59H1401C High Voltage GreenFET Load Switches
