Renesas Electronics RZ/T2M Group Microprocessors

Renesas Electronics RZ/T2M Group Microprocessors integrate functions for motor control, networking, and functional safety (FuSA) into a single chip. The RZ/T2M Group MPUs feature a dual Arm^® Cortex^®-R52 CPU for real-time control and large, tightly coupled memory (576KB) directly connected to the CPU to realize high-performance real-time processing. In addition to motor control peripheral functions, the devices provide abundant peripherals such as ECC, functional safety, industrial Ethernet, and TSN standards that are required for industrial equipment.

The Renesas Electronics RZ/T2M Group Microprocessors are offered in BGA225, BGA320, QFP128, and QFP176 packages.

Features

800MHz Dual Arm Cortex-R52 CPU with FPU
576KB tightly-coupled memory (TCM) with ECC
Optimized hardware configuration for motor control
Supports multi-protocol Industrial Ethernet
3-port Gigabit Ethernet switch with TSN

Optimized hardware configuration for functional safety processing
Integrated ΔΣ interface
BGA225, BGA320, QFP128, and QFP176 package options

Applications

AC servos
Industrial motors
Inverters
Industrial networks

Sensor hubs
Motion controllers
Robotics
Communication modules

Renesas Electronics RZ/T2M Group Microprocessors

Features

Applications

Videos

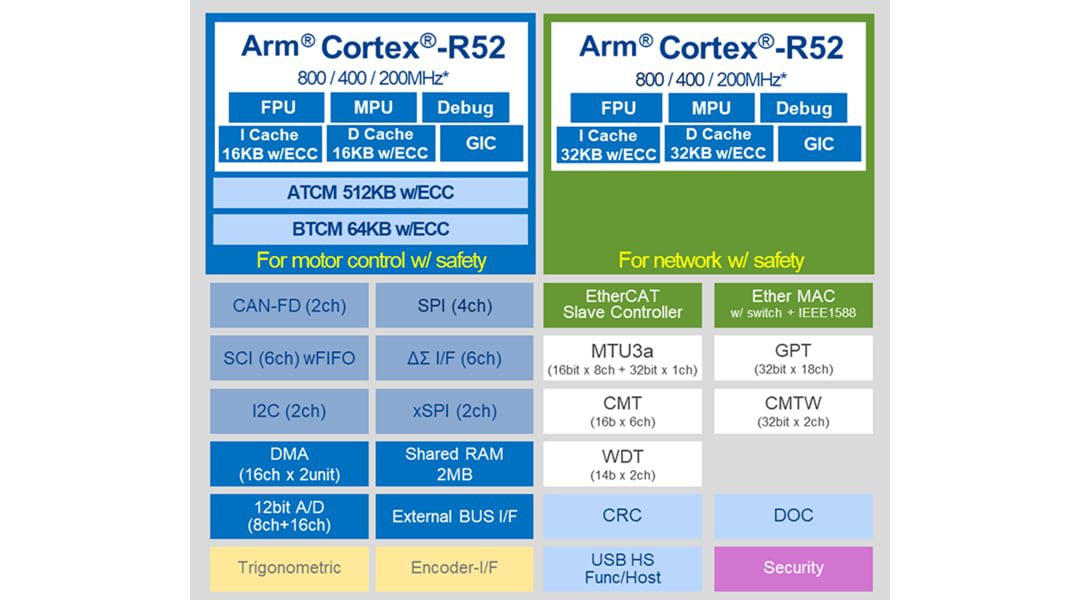

Block Diagram
