Renesas Electronics RV1S9353A Delta-Sigma Modulators

Renesas Electronics RV1S9353A Delta-Sigma Modulators are optically isolated devices that include high-accuracy A/D converter and convert an analog voltage input into a one-bit data stream. The RV1S9353A modulators provide 13.8bits typical Effective Number of Bit (ENOB) with a Sinc³digital filter. These optically isolated modulators are designed specifically for high Common-Mode Transient Immunity (CMTI) and high linearity. The RV1S9353A delta-sigma modulators are suitable for current sensing and voltage sensing in motor drives.

The RV1S9353A delta-sigma modulators operate at 6V supply voltage and -40°C to +110°C ambient temperature range. These optically isolated modulators are used in AC servo, inverter, solar inverter, and measurement equipment.

Features

±0.5% typical gain error
13.8bits typical Effective Number of Bit (ENOB)
-40°C to +110°C operating ambient temperature range
25LSB maximum non-linearity
2mV maximum input offset voltage

0.2µV/℃ typical input offset voltage drift vs. temperature
10MHz typical output clock frequency
15kV/µs minimum high common-mode transient immunity
8mm minimum long creepage distance
Pb-free product

Safety

UL approved:
- No. UL1577 double protection
CSA approved:
- CAN/CSA-C22.2 No.62368-1 reinforced insulation

DIN EN 60747-5-5 approved (option)

Applications

Motor control for industrial automation:
- AC servo
- NC servo
- Robot controller

Solar inverter
Measurement equipment

Renesas Electronics RV1S9353A Delta-Sigma Modulators

Features

Safety

Applications

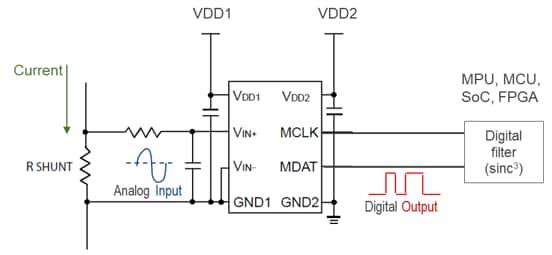

Application Circuit

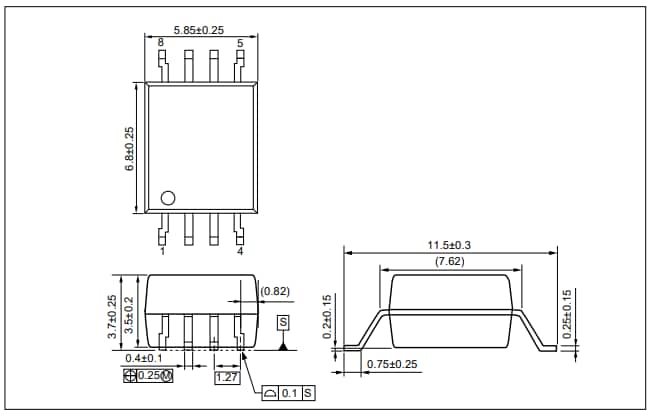

Package Outline
