Renesas Electronics RTK9FPG021S00001BJ Fast Prototyping Board

Renesas Electronics RTK9FPG021S00001BJ Fast Prototyping Board is designed for evaluation, prototyping, and development with the R9A02G021 MCUs. This board incorporates a SEGGER J-Link™ emulator circuit that enables the user to design applications seamlessly, eliminating the need for additional investments in tools. The RTK9FPG021S00001BJ board is equipped with through-holes for pin headers that allow access to all MCU signal pins. This feature simplifies prototyping with a breadboard for swift and convenient experimentation and development. Other key features are categorized into three groups, including MCU native pin access, special feature access, and system control and ecosystem access. Typical applications include consumer electronics, home appliances, industrial sensors, bus-powered sensors, medical sensors, health tracking, battery-powered devices, detectors, vehicle tracking, and inverters.

Features

Evaluation MCU, R9A02G0214CNE, housed in a 48-pin HWQFN package, boasts 128KB Flash, 16KB RAM, and an additional 4KB data flash memory
SEGGER J-Link™ OB
USB Type-C™ connector
2-pin external power-supply headers (dnf)
1 reset button and 1 user button

Green power led, two user leds, and yellow debug led
Pmod™ connector angle type, 12 pins x 2
Arduino^® connector 6 pins x 1, 8 pins x 2, and 10 pins x 1 (compatible with Arduino^® UNO R3)
Grove^® connector angle type, 4 pins x 1 (dnf)
MCU breakout pins on header, 24 pins x 2 (dnf)

Applications

Consumer electronics
Home appliances
Industrial sensors
Sensor modules
Bus powered sensors
Medical sensors
Health tracking

Remote controls
Battery powered devices
Low-power home accessories
Detectors
Vehicle tracking
Intelligent power supplies
Inverters

Renesas Electronics RTK9FPG021S00001BJ Fast Prototyping Board

Features

Applications

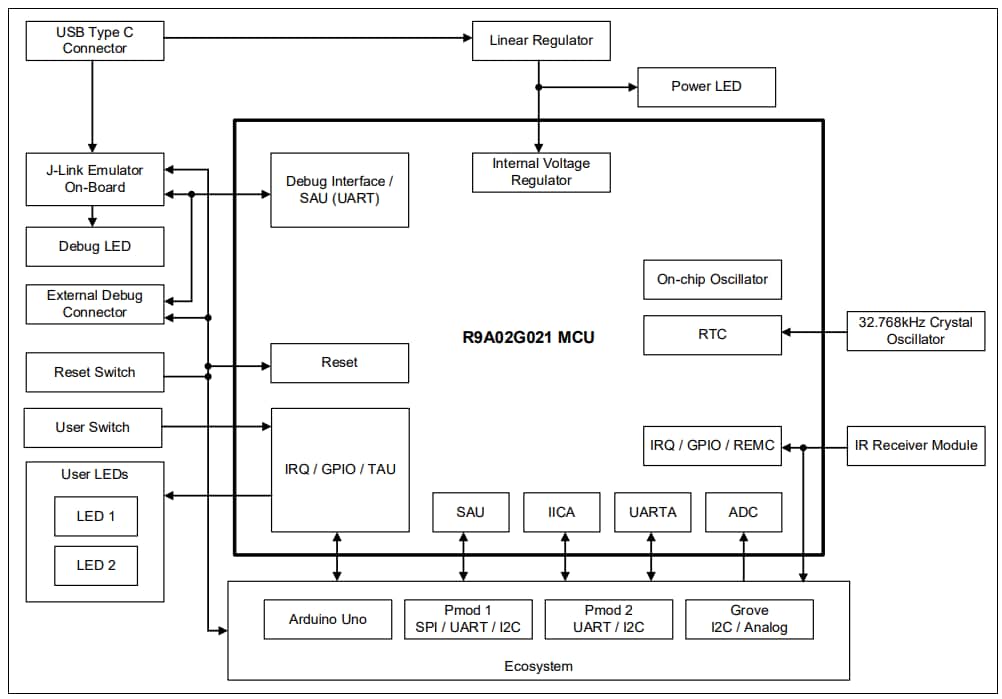

Block Diagram

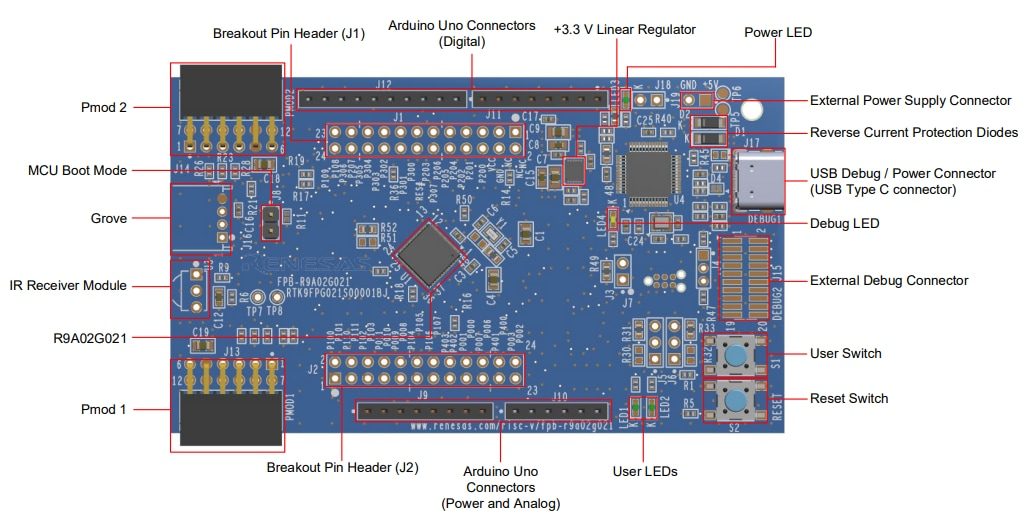

Board Top View
