Renesas Electronics RTK00WFMX0B0x Wi-Fi Pmod™ Expansion Boards

Renesas Electronics RTK00WFMX0B0x Wi-Fi Pmod™ Expansion Boards feature SX-ULPLGN 2.4GHz 802.11n single-band module based on the Qualcomm QCA4010 System-on-Chip (SoC). These expansion boards enable quick prototyping of wireless connectivity solutions using a variety of Renesas MCU circuits. The RTK00WFMX0B0x expansion boards feature a 1×1 single-stream system, one UART, and one HS-UART MCU host interface. These expansion boards include WPA, WPA2, WPS, and WEP 64/128 security and support IPv4, IPv6, and TCP/UDP network protocols. The RTK00WFMX0B0x expansion boards have 12dBm to 17dBm transmit power range and -86dBm to -95dBm receives sensitivity range.

Features

Full suite of AT command supports
Station AP, concurrent, and Wi-Fi direct operating modes
1×1 single-stream system
One UART and one HS-UART MCU host interfaces

WPA, WPA2, WPS, and WEP 64/128 security
IEEE 802.11b/g/n compliant, 2.4GHz, HT20, MCS0-7, up to 13-ch
IPv4, IPv6, and TCP/UDP network protocols

Specifications

12dBm to 17dBm transmit power range
-86dBm to -95dBm receive sensitivity range

76mA Rx, 124mA Tx, 13μA standby power consumption mode

Renesas Electronics RTK00WFMX0B0x Wi-Fi Pmod™ Expansion Boards

Features

Specifications

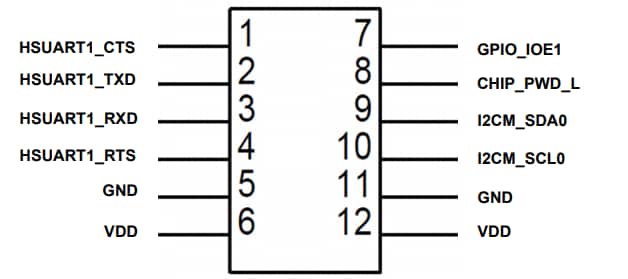

Pmod™ Pin Diagram

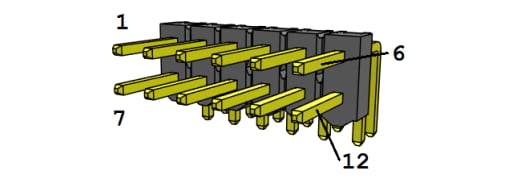

Connector CN1 Pin Assignment
