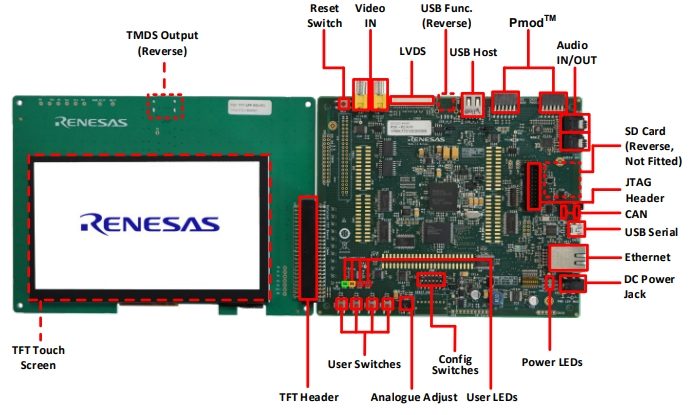

Renesas Electronics RSK+RZA1H TFT Application Board

Renesas Electronics RSK+RZA1H TFT Application Board is included as an add-on board for the RSK+RZA1H for demonstrating the RZ/A1H’s TFT Video Display Controller (VDC5) capabilities. This application board uses a 7-inch EastRising TFT LCD (ER-TFT070-2) with an 800×480 resolution. The RSK+RZA1H TFT application board comes with a panel that accepts data in the RGB888 format. The LCD is also fitted with a capacitive multi touch-screen panel (ERTPC070-6). This application board features a touch-screen panel that detects a maximum of five touch-points. This board can also be connected to other target boards with capabilities of driving a TFT-LCD.
