Renesas Electronics RSK-RX111 Starter Kit

Renesas Electronics RSK-RX111 Starter Kit is designed to evaluate and demonstrate the RX111 microcontroller. This kit provides a platform for evaluating the development tools for coding and debugging using CubeSuite+. The RSK-RX111 kit is ideally used in cameras, meters, smartphones, health equipment, refrigerator, washing machine, air conditioner, and building management systems.

Specifications

RX111 (R5F51115ADFM) microcontroller
16K-bit I²C EEPROM (R1EX24016ASAS0A) on-board memory
16MHz main and 32.768kHz sub input clock
10kΩ single-turn potentiometer
1 x reset and 3 x user switches

14-pin box E1 header
LED:
- 1 x green power indicator
- 1 x green, 1 x orange, and 2 x red user
5V input DC power jack

Kit Contents

CPU board
Monochrome LCD board PmodTM compatible
Detachable AD adjustment shaft
E1 Emulator (provided until the stock of the Kit with the E1 emulator ends)
Connection cable (USB cable, user interface cable)
DVD-ROM
Kit with Renesas CubeSuite+:
- IDE:
  - CubeSuite+ (evaluation software)
  - C/C++ compiler package for RX family evaluation version
  - E1 Emulator debugger
- Flash memory programmer (evaluation software)

Kit with e² studio:
- IDE:
  - e² studio
  - C/C++ compiler package for RX family evaluation version
  - E1 Emulator debugger

Applications

Camera
Meter
Smartphone
Health equipment

Refrigerator
Washing machine
Air conditioner
Building management system

Renesas Electronics RSK-RX111 Starter Kit

Specifications

Kit Contents

Applications

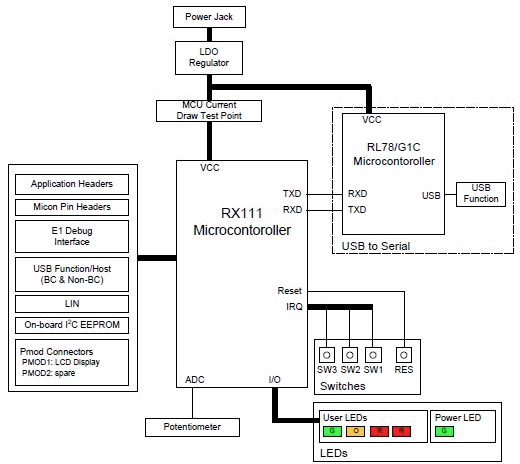

Block Diagram

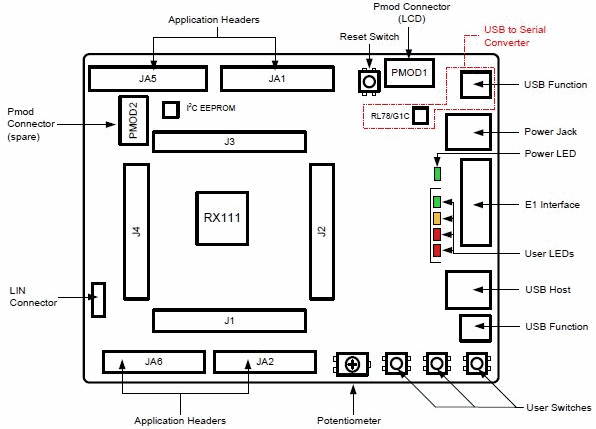

Layout Diagram
