Renesas Electronics RRM12120 Digital BGA-POP Power Module

Renesas Electronics RRM12120 Digital BGA-POP Power Module offers high efficiency in a small form factor for high current applications. The RRM12120 20A, 12V single-channel digital PMBus step-down power module integrates all required power conversion silicon with the output inductor. The high efficiency and accurate output voltage (+/-0.7%) of the device allow for best-in-class performance.

The Renesas RRM12120 provides an Extremely small footprint size of 10.0mm x 13.0mm x 5.9mm in a BGA package.

Features

PMBus Compliant controller + SPS
User-accessible one-time-programmable memory slots
Wide operating range
Wide V_IN range of 4.75 to 15V
Programmable output voltages (0.45 to 3.3V)
Pin-selectable pre-programmed output voltages

0.7% Output voltage accuracy over temperature
20A Continuous current
Up to 94% efficiency
Small 10mm x 13mm x 5.9mm tall package
“Black box” fault capture and recording

Applications

Server, telecommunications, storage, and data communications
Industrial/ATE and networking equipment
General purpose power for MCU, ASIC, FPGA, DSP, and memory

Renesas Electronics RRM12120 Digital BGA-POP Power Module

Features

Applications

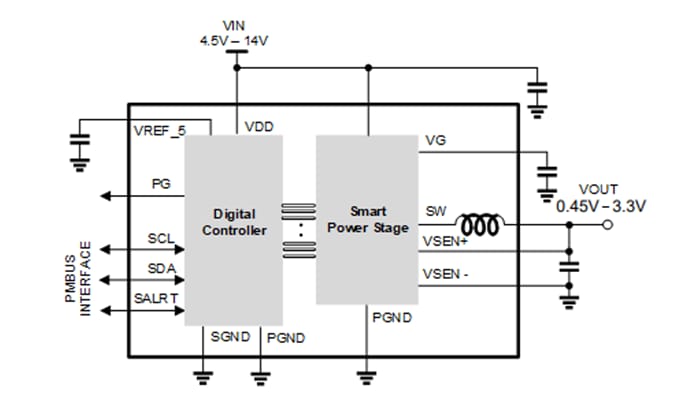

Typical Application
