Renesas Electronics RL78/L1C Starter Kit

Renesas Electronics RL78/L1C Starter Kit is designed to evaluate and demonstrate the RL78/L1C microcontroller. This kit provides a platform for evaluating development tools for coding and debugging by using CubeSuite+. The RL78/L1C starter kit helps evaluate the device and peripheral capabilities by giving the user a simple platform where code can be run only minutes from opening the box.

Kit Contents

CPU board
Detachable LCD application board V2
Detachable AD adjustment shaft
E1 emulator (Provided until the stock of the kit with the E1 emulator ends)
Connection cable (USB cable and user interface cable)
Quick start guide
DVD-ROM:
- Documents such as user manuals and tutorials
Kit with CubeSuite+:
- Flash programmer (evaluation software)
- IDE:
  - CubeSuite+ (evaluation software)
  - RL78, 78K0R compiler
  - E1 emulator debugger

Kit with e² studio:
- IDE:
  - e² studio
  - KPIT GNURL78 toolchain
- E1 emulator debugger

Applications

Household products:
- Refrigerator
- IH rice cooker
- IH cooking heater
Remote control
Office equipment
Audio system

Mobile device
Healthcare device
Measurement equipment
Detector

Renesas Electronics RL78/L1C Starter Kit

Kit Contents

Applications

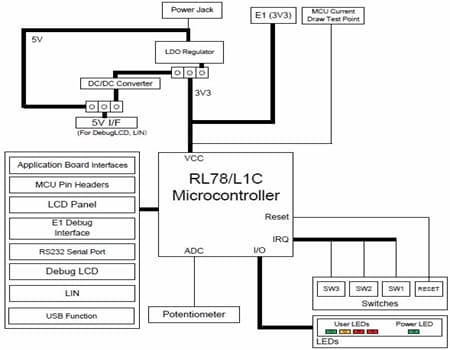

Block Diagram

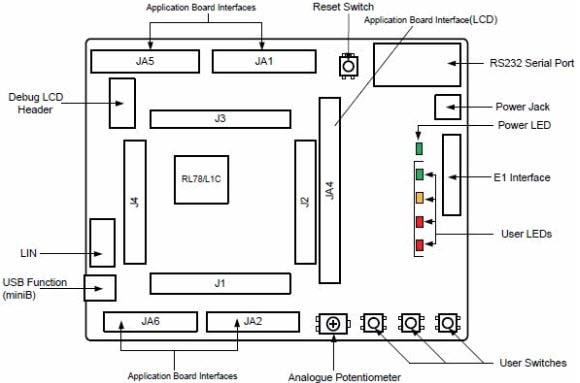

Layout Diagram
