Renesas Electronics RL78/G22 Capacitive Touch Evaluation System

Renesas Electronics RL78/G22 Capacitive Touch Evaluation System is a kit designed for evaluating the RL78/G22 of microcontrollers. This kit evaluates various touch functions (button, slider, and wheel) and works as a reference while designing boards or software. The RL78/G22 kit features E2/E2 Lite debugger connector, general-purpose switches and LEDs, and a capacitive touch sensor (CTSU2La) (29 channels available). The RL78/G22 capacitive touch evaluation system complies with IEC 61000-4-3 and IEC 61000-4-6 Level 3.

Features

E2/E2 Lite debugger connector microcontroller programming and debugging
General-purpose switches and LEDs
Evaluate various touch functions (button, slider, and wheel)
Simple prototyping
Used as a reference when designing boards or software
RL78/G22 MCU (R7F102GGE2DFB) mounted

Capacitive touch sensor (CTSU2La) terminal 29 channels available
Easily adjust the sensitivity by using QE for capacitive touch:
- Easy operation with an intuitive interface
- Easy to develop touch interfaces even for beginners with GUI
- Automatically output adjusted source code
Compliant with IEC 61000-4-3 and IEC 61000-4-6 level 3

Renesas Electronics RL78/G22 Capacitive Touch Evaluation System

Features

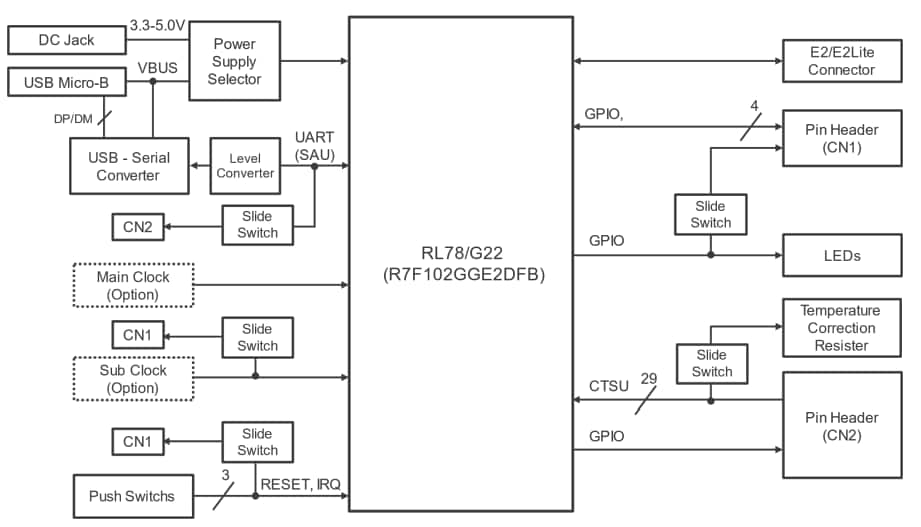

Block Diagram
