Renesas Electronics RL78/G15 Low Power Microcontrollers

Renesas Electronics RL78/G15 Low Power Microcontrollers (MCUs) offer low pin counts (8-pin to 20-pin packages) with rich serial interfaces for cost-effective portable applications. RL78/G15 MCUs offer a true low-power platform with a 54μA/MHz operating current, 4KB or 8KB flash memory, 1KB SRAM, 1KB data flash, and a 2.4V to 5.5V range with operating temperatures up to +125°C.

Features

Low power consumption technology
All ports can use as I/O except VDD and VSS
RL78-S2 CPU core up to 16MHz
4KB/8KB Flash Memory and 1KB SRAM
1KB Data Flash
Operating temperature range up to +125°C
General PWM timer
10-bit A/D converter and comparator
SCI (CSI, UART, Simple I²C) and I²C interfaces
On-chip debug 2.4V to 5.5V (single-wire, double-wire)

Package options
- 8-pin plastic WDFN, 3mm² with a 0.65mm pitch

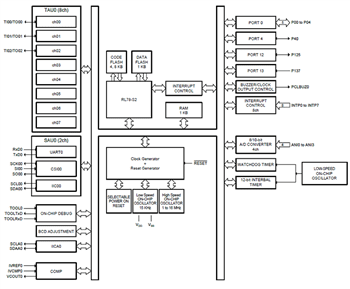

- 10-pin plastic LSSOP, 4.4mm x 3.6mm with a 0.65mm pitch

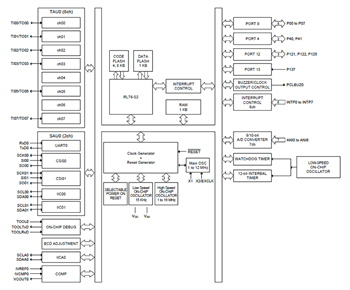

- 16-pin plastic SSOP, 4.4mm x 5.0mm with a 0.65mm pitch
- 16-pin plastic HWQFN, 3mm² with a 0.5mm pitch

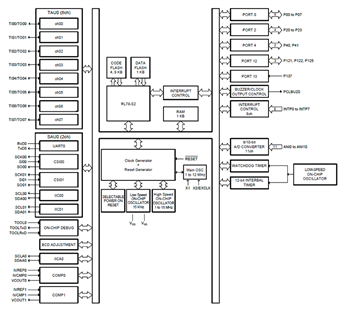

- 20-pin plastic LSSOP, 4.4mm x 6.5mm with a 0.65mm pitch
