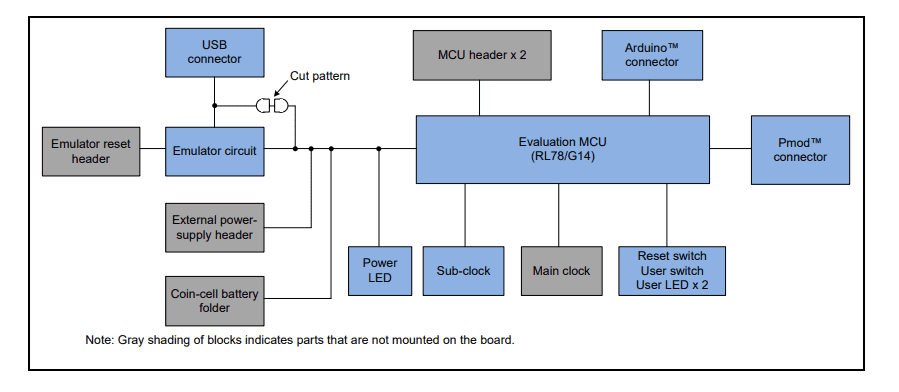

Renesas Electronics RL78/G14 Fast Prototyping Board is designed with the high-performance RL78/G14 microcontroller equipped and is ideal for prototype development in a variety of applications. The RL78/G14 Board features a built-in emulator circuit. The emulator circuit is equivalent to an E2 emulator Lite, allowing write/debugging of programs without additional tools.

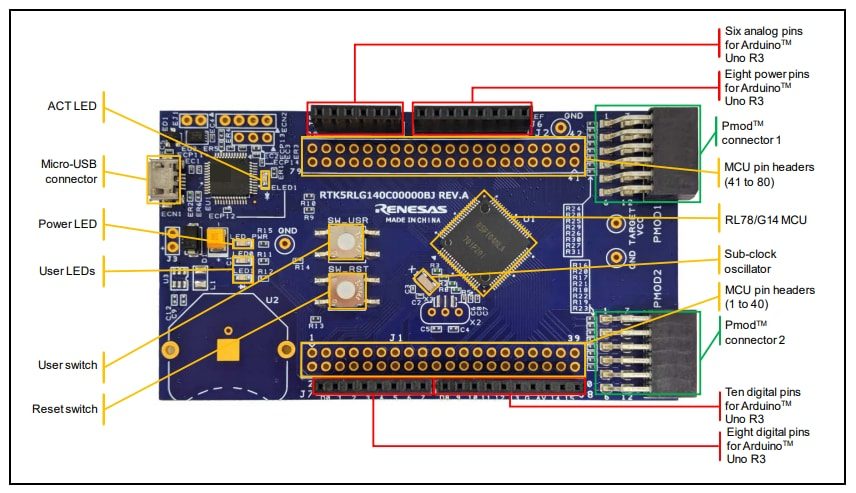

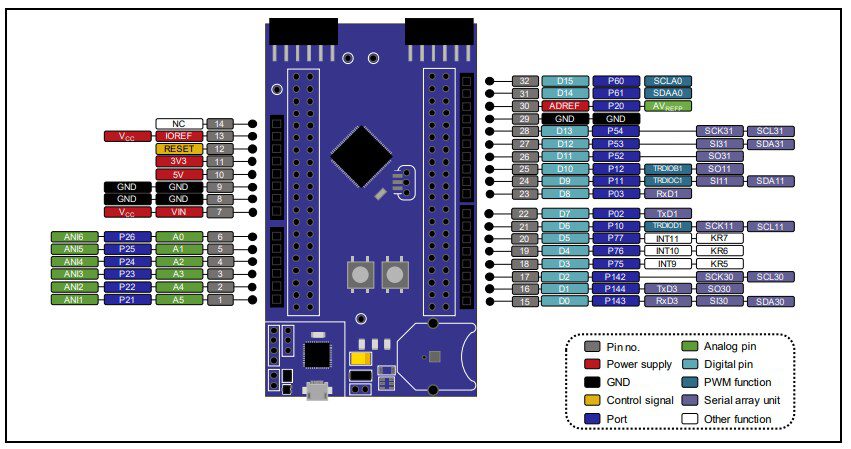

The Renesas Electronics RL78/G14 Fast Prototyping Board provides high expandability with Arduino Uno and Pmod™ interfaces included standard and through-hole access to all pins of the microcontroller. Combining the RL78/G14 Fast Prototyping Board with the RL78/G1D BLE Module Expansion Board permits Bluetooth® Low Energy wireless communication functionality to be readily added and allowing early prototyping of IoT endpoint devices. Additionally, prototyping IoT sensor devices is possible using wireless communication based on LoRa® with a Semtech SX1261/SX1262 LoRa transceiver.
