Renesas Electronics RL78/F24 Target Board

Renesas Electronics RL78/F24 Target Board is used to evaluate the RL78/F24 microcontroller. The Renesas Electronics RL78/F24 board is equipped with a 4MHz resonator and a 32.768kHz resonator. The board has support for flash memory programming and on-chip debugging via the TOOL0 pin.

Features

  • Incorporates RL78/F24 (R7F124FPJ)
  • Mounted 4MHz resonator and 32.768kHz resonator
  • Supports flash memory programming and on-chip debugging (using TOOL0 pin)
  • Equipped with universal area (2.54mm pitch)
  • Highly extendable; peripheral board connectors are equipped with microcontroller pins

Applications

  • On-chip debugging with E2 and E2 Lite emulators
  • MCU evaluation
  • Flash memory programming

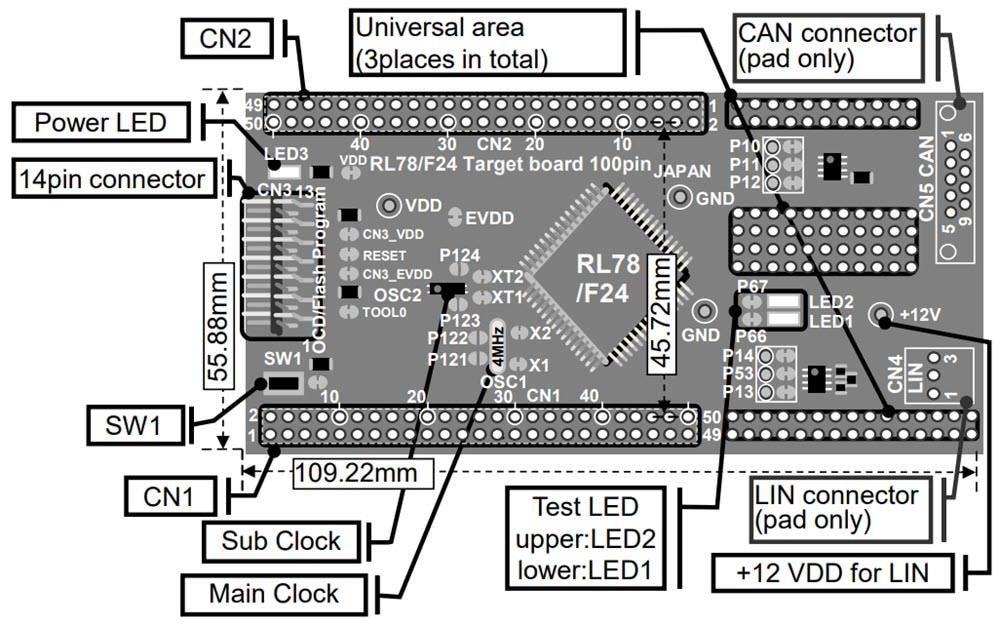

Dimensions and Parts Layout

Renesas Electronics RL78/F24 Target Board
