Renesas Electronics RH850/F1KM-S4 Starter Kit

Renesas Electronics RH850/F1KM-S4 Starter Kit helps designers evaluate the RH850/F1KM-S4 High-end Automotive Microcontrollers’ operation and performance. The RH850/F1KM-S4 High-end Automotive Microcontrollers are a 32-bit single-chip microcontroller with a G3KH CPU core. The RH850/F1KM-S1 features low power consumption, high computational processing power, and various internal peripheral functions.

The Renesas RH850/F1KM-S4 Starter Kit features connections for on-chip debugging and flash memory programming.

Features

Connections for on-chip debugging and flash memory programming
Access to all microcontroller I/O pins
User interaction through potentiometer, rotary switch, buttons, LEDs

Serial interface connections for
- 1x RS-232
- 1x LIN
- 2x CAN-FD
Power supply by RENESAS E1 On-Chip debugger or externally (12V DC input)

Renesas Electronics RH850/F1KM-S4 Starter Kit

Features

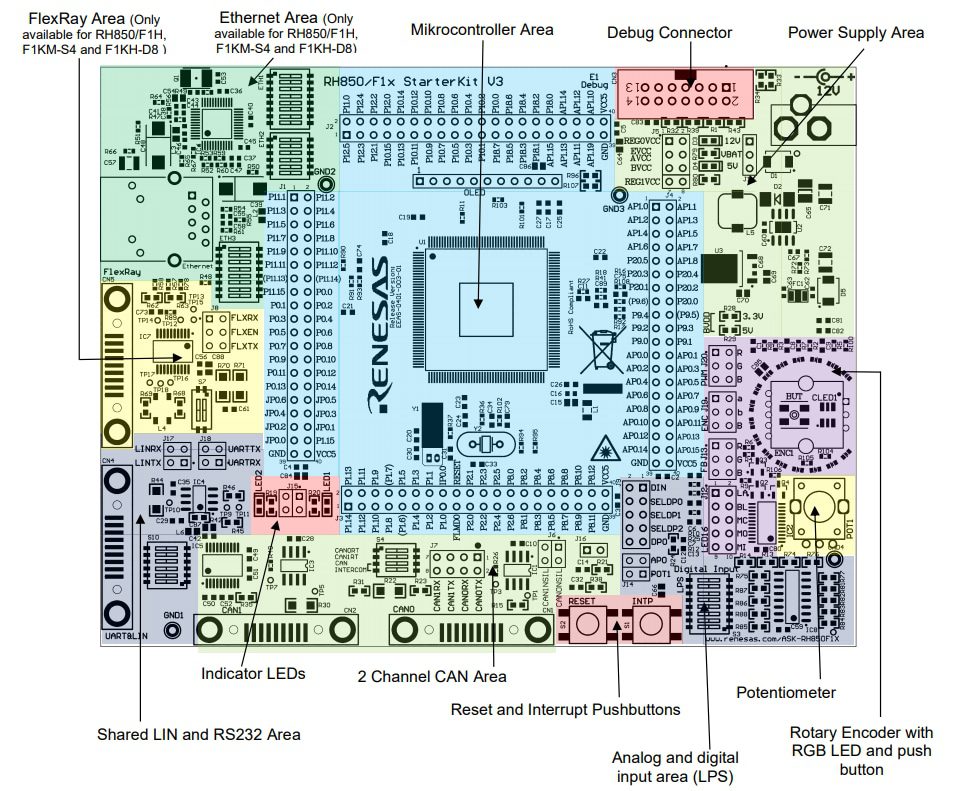

Functional Areas

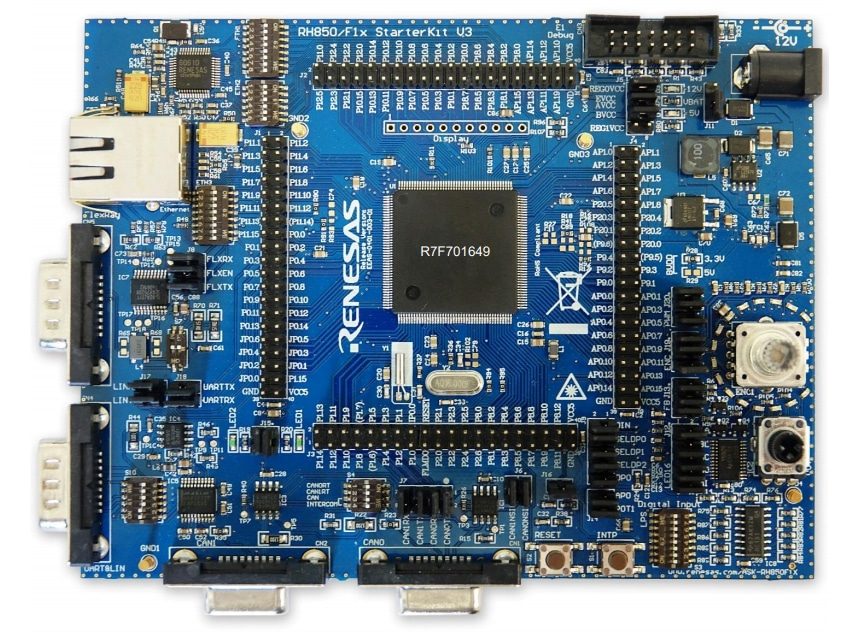

Layout

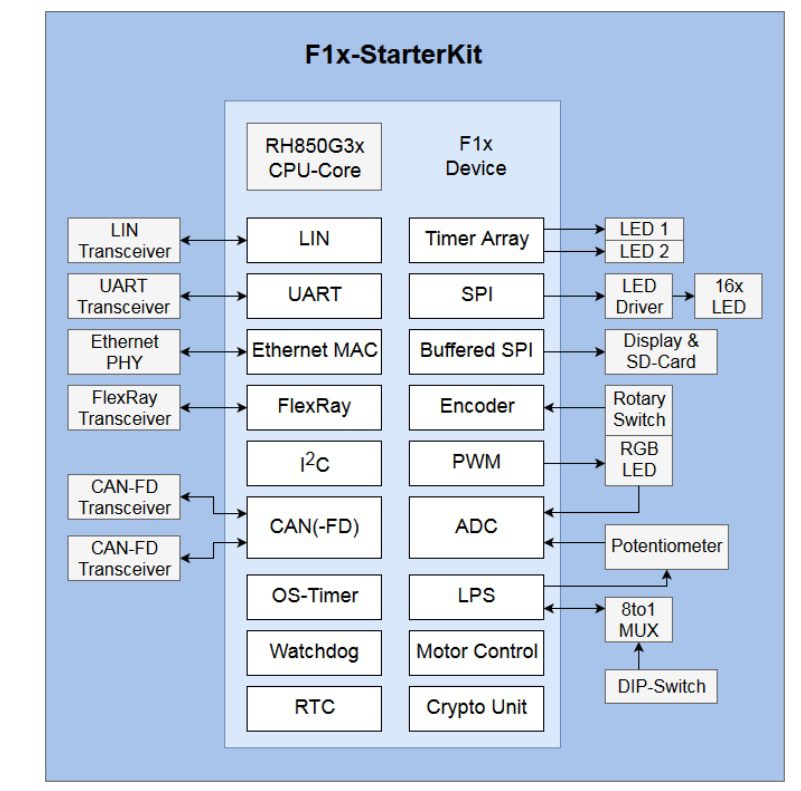

Block Diagram
