Renesas Electronics RA6T2 Motor Control Kit

Renesas Electronics RA6T2 Motor Control Kit is used to evaluate the RA6T2 Motor Control MCUs. The RA6T2 is a high-performance device with timer and safety functions. The device feature an enhanced CPU and hardware accelerator that can realize high-end motor algorithm for home appliance and industrial automation.

Kit Contents

Inverter Board (RTK0EM0000B12020BJ) x1
CPU Board (RTK0EMA270C00000BJ) x1
Communication Board (RTK0EMXC90Z00000BJ) x1
Brushless DC Motor (R42BLD30L3) x1

Communication Cable x1
USB Cable x2
Screw x12
Standoff x12

Inverter Board Layout

Renesas Electronics RA6T2 Motor Control Kit

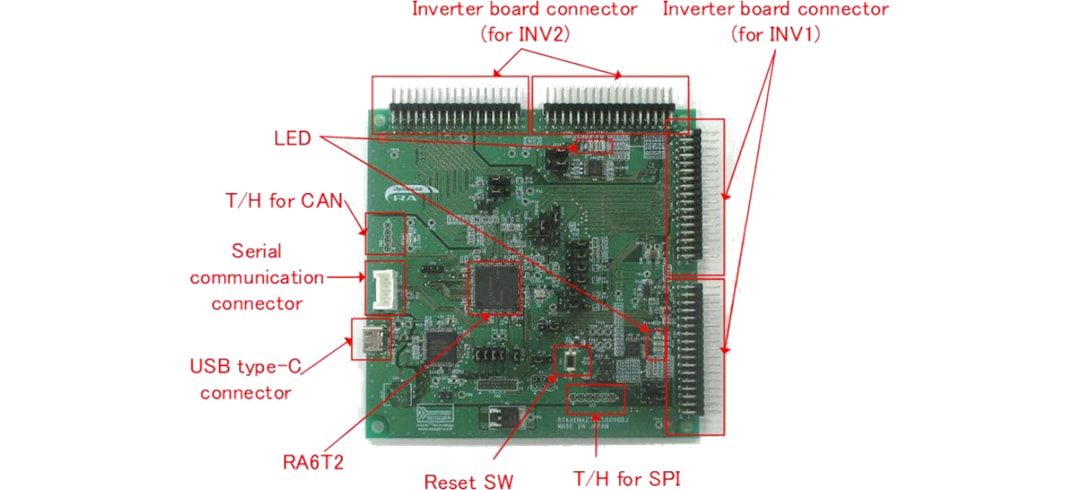

CPU Board Layout

Renesas Electronics RA6T2 Motor Control Kit

Communication Board Layout

Renesas Electronics RA6T2 Motor Control Kit

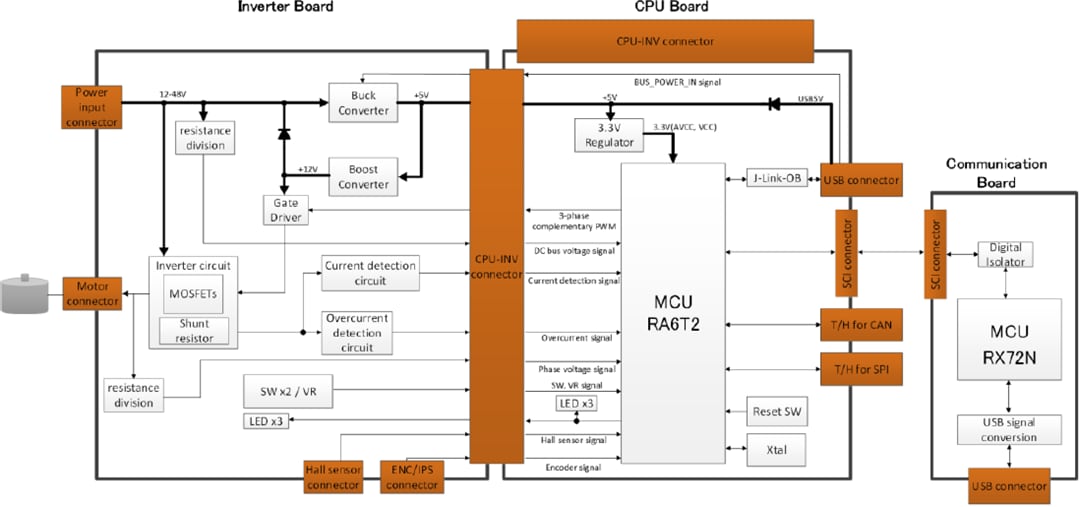

Block Diagram

Block Diagram - Renesas Electronics RA6T2 Motor Control Kit
