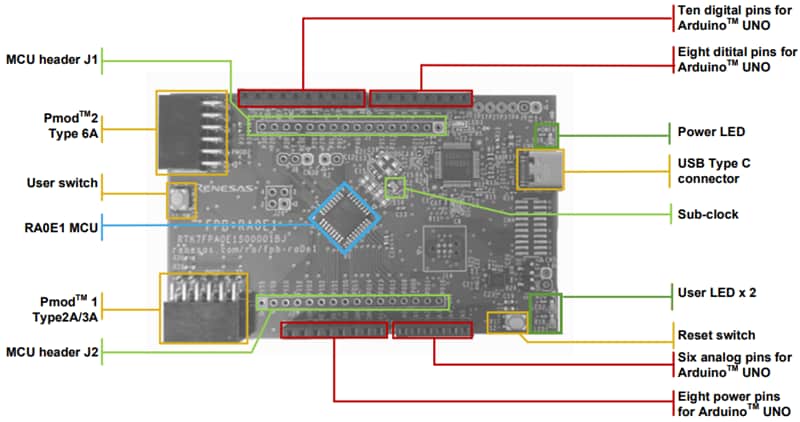

Renesas Electronics RA0E1 Fast Prototyping Board

Renesas Electronics RA0E1 Fast Prototyping Board is designed for the RA0E1 MCU for prototype development across multiple applications. The Renesas Electronics RA0E1 integrates a SEGGER J-Link™ emulator circuit for seamless programming and debugging. The board offers extensive expandability with Arduino Uno™ and Pmod™ interfaces, along with through-hole access to all microcontroller pins. Sample software is provided to showcase the RA0E1 MCUs capabilities and to simplify connections with wireless or sensor modules.

Features

Equipped with an RA0E1 32-bit MCU 32-pin ROM 64KB, RAM 12KB
No additional tools are required for program debugging/writing with the built-in SEGGER J-Link emulator circuit

Through-holes with access to all of the pins of the MCU
Arduino Uno and Pmod interfaces
53mm x 85mm small size board
Support for various RA0E1 software and tools

Applications

General purpose systems
IoT devices
Industrial automation and sensors
Consumer applications

Home appliances
Building automation
Medical and healthcare devices
Wearable devices
