Renesas Electronics MCK-RA6T3 Motor Control Kit for RA6T3 MCU Group

Renesas Electronics MCK-RA6T3 Motor Control Kit for RA6T3 MCU Group facilitates easy evaluation of motor control using permanent-magnet synchronous motors, also known as BLDC motors. This kit supports 1-/2-/3-shunt current detection, a motor control development support tool (Renesas Motor Workbench), and provides overcurrent protection function using overcurrent detection circuit. Kit contents include one inverter board (RTK0EM0000B12020BJ), one CPU board (RTK0EMA330C00000BJ), one brushless DC Motor (R42BLD30L3), one USB cable, eight screws, and eight standoffs. The MCK-RA6T3 motor control kit is used for brushless DC motor solutions.

Features

The CPU board is equipped with the RA6T3 as the motor control MCU
Inverter board for 3-phase BLDC motor (48V/10A rating)
On-board debugger for flash programming of RA6T3
Supports 1-shunt/3-shunt current sensing

Over-current detection
Supports the motor control development support tool “Renesas Motor Workbench”
Supports Hall sensors, encoders, and inductive position sensors

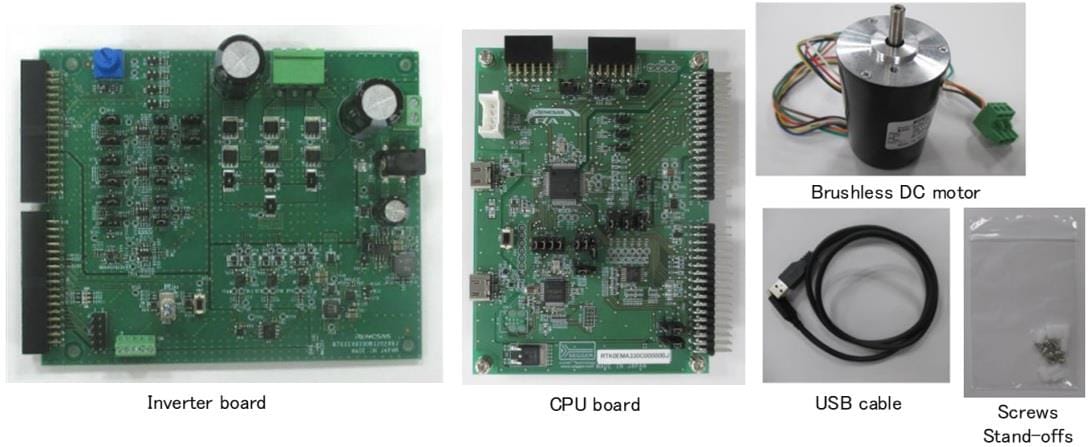

Kit Contents

1x Inverter board (RTK0EM0000B12020BJ)
1x CPU board (RTK0EMA330C00000BJ)
1x Brushless DC motor (R42BLD30L3)

1x USB cable
8x Screws
8x Standoffs

Renesas Electronics MCK-RA6T3 Motor Control Kit for RA6T3 MCU Group

Features

Kit Contents

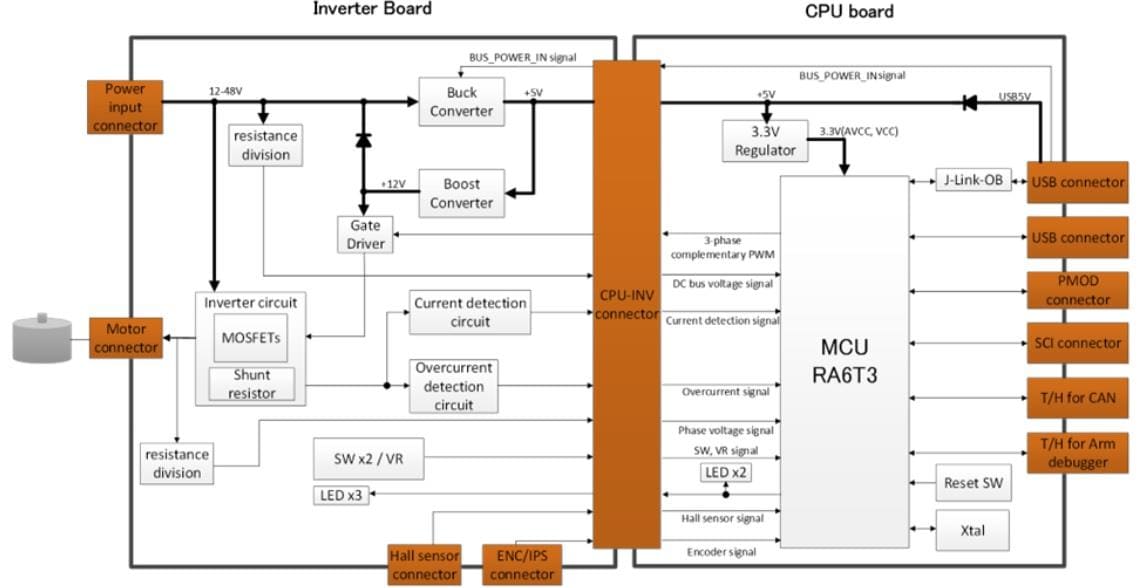

Block Diagram

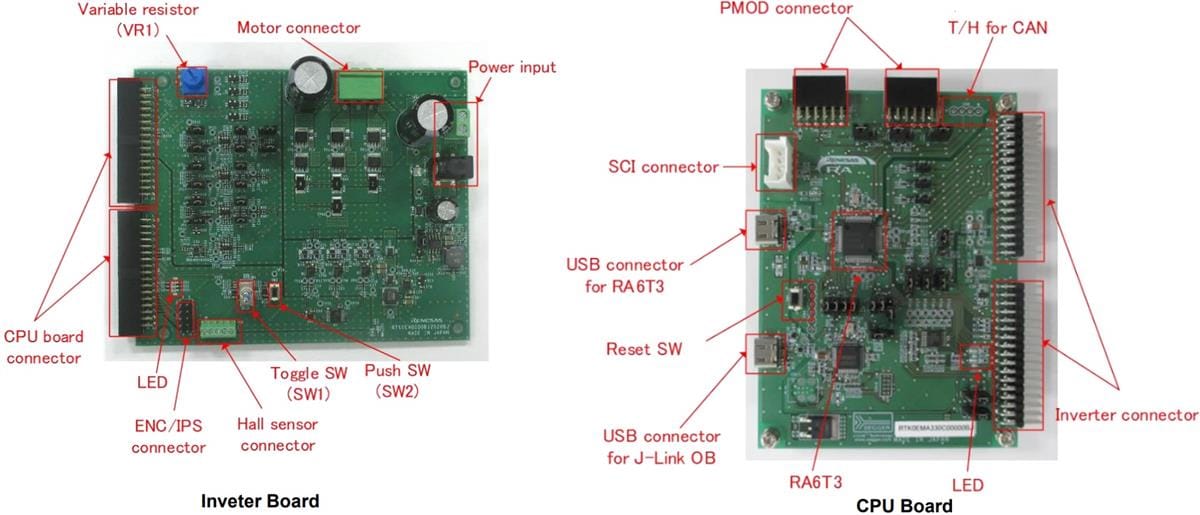

Boards Overview
