Renesas Electronics iW3627 Digital Offline PWM Controllers

Renesas Electronics iW3627 Digital Offline PWM Controllers provide a constant voltage for smart LED lighting applications with a high power factor and low THD. These controllers support most non-isolated (buck, buck-boost, or flyback) and single-stage isolated topologies. These topologies offer a standalone power supply in Solid-State Lighting (SSL) or front-end applications. The iW3627 digital offline PWM controllers feature adaptive output voltage transient detection and a tiny 6-pin SOT-23 package. These controllers operate up to 90W output power with an enhanced internal MOSFET driver, enabling <200mW low no-load standby power consumption. The iW3627 digital offline PWM controllers are used in intelligent LED lighting, LED lighting ballasts, and front-end pre-regulators.

Features

Up to 90W output power with enhanced internal MOSFET driver
Supports isolated or non-isolated topologies, including flyback, buck, or buck-boost
High PF (>0.9) and low THD (<20%)
Adaptive output voltage transient detection
- Enables fast transient response with variation <+/-10% of nominal output voltage
Accommodates large capacitance variations and capacitor aging configurable minimum switching frequency
- Enables low no-load standby power consumption (<200mW)
Configurable PWM maximum switching frequency
- Optimizes for high efficiency and small size

Tiny 6-Pin SOT-23 package
Active start-up reduces turn-on time without increasing standby power
Fully protected:
- Input brown-out protection
- Over temperature protection
- Output overvoltage, overcurrent, and over-load protection

Applications

Smart LED lighting
LED lighting ballasts
Front-end pre-regulator
Voice-activated DALI lighting controls

Voice-controlled clotheshorse with connectivity
Smart BLDC ceiling fan
Smart BLDC air cooler

Renesas Electronics iW3627 Digital Offline PWM Controllers

Features

Applications

Block Diagram

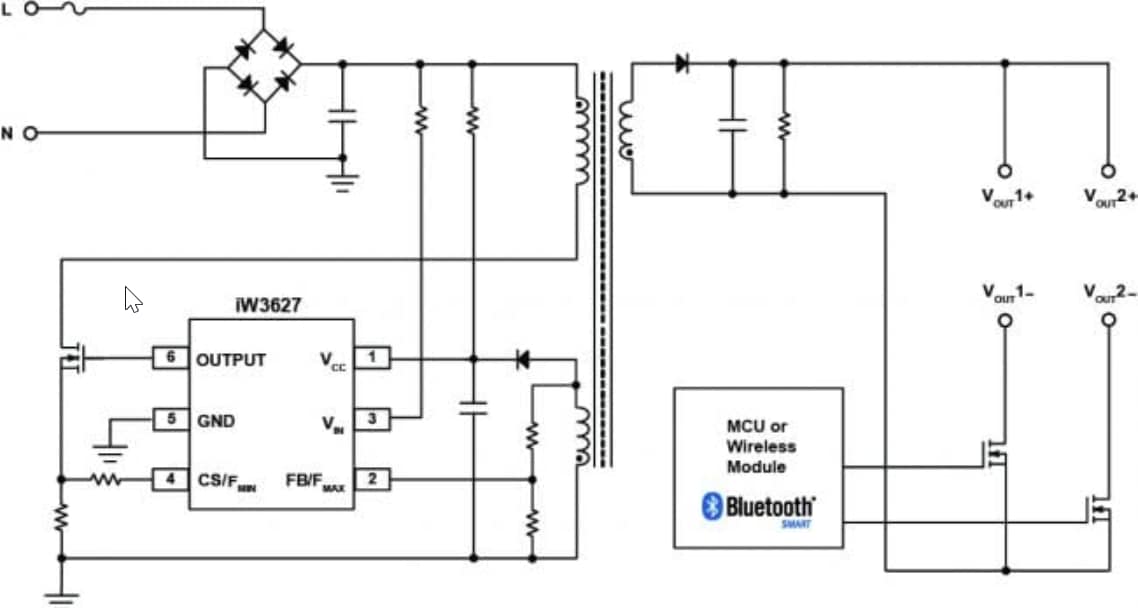

Typical Application Circuit Diagram
