Renesas Electronics IPS2200 High-Speed Inductive Position Sensor Kit

Renesas Electronics IPS2200 High-Speed Inductive Position Sensor Kit is used to evaluate Renesas Electronics IPS2200 High-Speed Inductive Position Sensor. The sensor uses the physical principle of Eddy currents instead of magnets and is up to 10x thinner and 100x lighter than resolvers. Typical applications include general-purpose motors, industrial machines and automation systems, small e-vehicles, medical equipment, robots, collaborative robots, and more.

Features

Used to evaluate Renesas Electronics IPS2200 High-Speed Inductive Position Sensor
USB plug and play; no driver installation required
Small IPS2-COMBOARD
I²C and SPI communication interfaces enable quick and easy configuration and calibration of the IPS2200 using a PC

High-speed reading of the analog output signals
Modular design allows user to conveniently swap different IPS2200 application modules
IPS2-COMBOARD and IPS2200 software (GUI) remains the same for different application modules

Applications

General-purpose brushless motors and stepper motors
Industrial machines
Industrial automation systems
Small e-vehicles

Medical equipment
Industrial sewing machines
Industrial pumps
Robots and collaborative robots (cobots)

Kit Contents

IPS2-COMBOARD
IPS2200MROT4x90001 application module board
Micro-USB cable
2x interface cables

Renesas Electronics IPS2200 High-Speed Inductive Position Sensor Kit

Features

Applications

Kit Contents

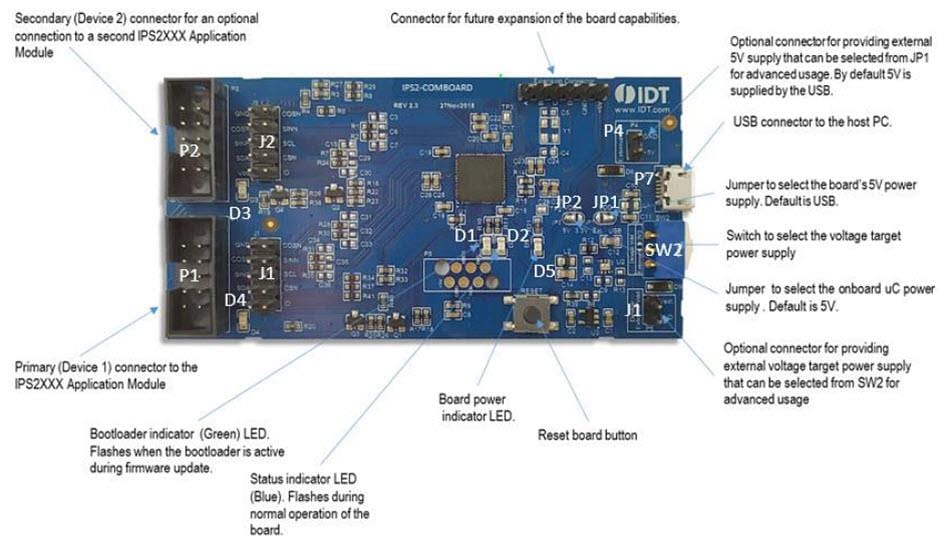

IPS2-COMBOARD Overview

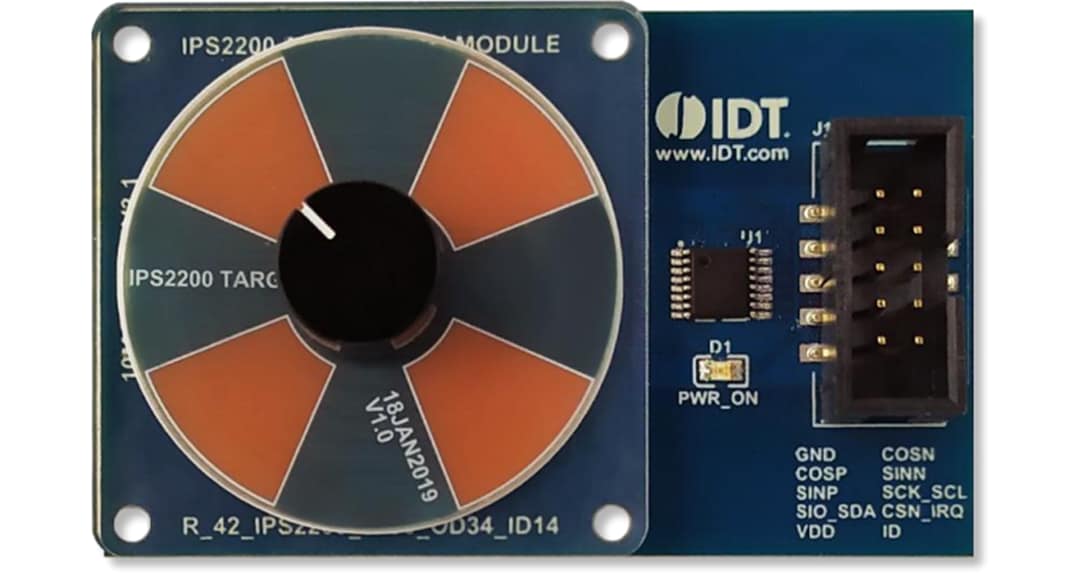

IPS2200MROT4x90001 Module Overview
