Renesas Electronics HIP2210EVAL1Z Evaluation Board

Renesas Electronics HIP2210EVAL1Z Evaluation Board is designed to provide a quick and comprehensive method for evaluating the HIP2210. The HIP2210 is a 100V 3A source, 4A sink high-frequency half-bridge driver for driving the gates of two N-channel MOSFETs in a half-bridge configuration. Two N-channel MOSFETs (with dual footprint supporting multiple packages like TO220 and DPAK) and an inductor-capacitor LC filter are included on the evaluation board to allow for the evaluation of a half-bridge driven load such as a synchronous buck switching regulator.

Features

3A source and 4A sink NMOS gate drivers
Internal level shifter and bootstrap diode for gate driver on high-side NFET
Up to 100V high-side bootstrap reference

6V to 18V bias supply operation
Fast 15ns typical propagation delay and 2ns typical propagation delay match supports up to 1MHz operation

Specifications

12V nominal V_DD supply
0V to 60V V_BRIDGE supply input

100kHz PWM switching frequency
3A source and 4A sink peak gate drive current

Renesas Electronics HIP2210EVAL1Z Evaluation Board

Features

Specifications

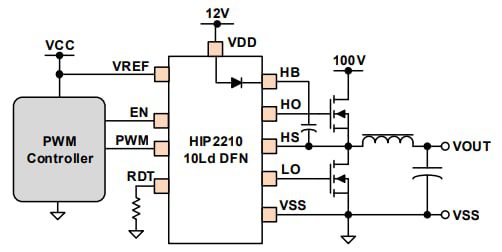

Block Diagram
