Renesas Electronics EZ-0012 Evaluation Board

Renesas Electronics EZ-0012 Evaluation Board integrates RL78/I1A 16-bit Microcontroller (MCU) and demonstrates MCUs LED lighting system control. This evaluation board (RL78/I1A DC/DC LED control evaluation board) supports flash programming and debug functions like code execution, memory manipulation, and step execution. The EZ-0012 evaluation board is powered through a 5V DC jack connector and USB interface. This evaluation board is equipped with a USB connector to be connected to the host, E1 emulator, DALI, DMX master, or any external target hardware.

Features

  • Integrates RL78/I1A microcontroller
  • Supports evaluation of three channels of LED constant current
  • Supports four dimmer interfaces:
    • DALI
    • DMX512
    • Infrared
    • Analog volume
  • Supports automatic software generation tool Applilet EZ for HCD
  • 5VDC power supply

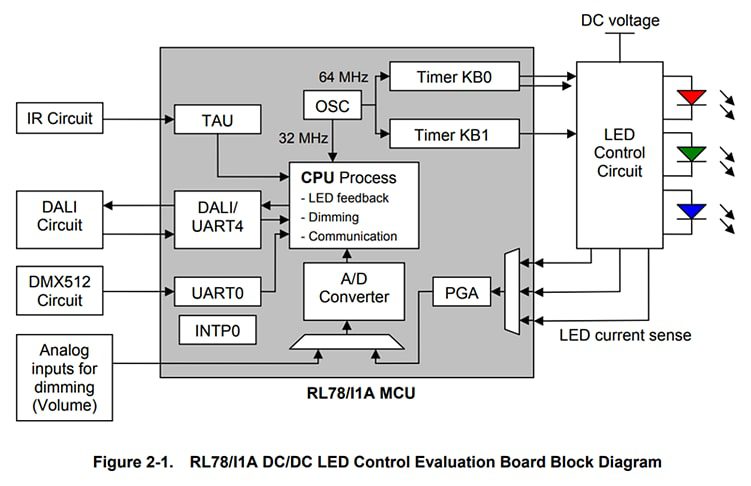

LED Control Eval Board Block Diagram

Block Diagram - Renesas Electronics EZ-0012 Evaluation Board
