Renesas Electronics EK-RX671 RX671 MCU Evaluation Kit

Renesas Electronics EK-RX671 RX671 MCU Evaluation Kit provides an efficient tool to evaluate the RX671 MCU. This kit includes all the hardware and software needed to start evaluation immediately after unboxing. The Renesas Electronics EK-RX671 enables debugging critical functions of the RX671. In addition, it could be combined with various expansion boards quickly to expand the board’s functionality easily.

Features

Hardware and software ready for evaluation right out of the box
On-board debugger (E2 OB): program writing and debugging are possible simply by connecting the board to a PC via USB cable
The ready-to-use software package includes peripheral function drivers, middleware, and guidance documentation
Ability to develop prototypes for a wide range of requirements
On-board popular ecosystem connectors: easily integrate with expansion boards such as sensor, wireless, LCD, motor boards, etc., enabling the development of a wide range of applications quickly

On-board HMI application target function: two capacitive touch buttons, Audio Interface with MEMS micros, and 3.5mm headphone jack enable the evaluation of HMI functions
Rich external memory expansion function: 64Mb QSPI Flash, 128Mb 16-bit SDRAM, MicroSD Slot enable expanding memory easily
Multiple power options to enhance power supply flexibility to meet various needs

Renesas Electronics EK-RX671 RX671 MCU Evaluation Kit

Features

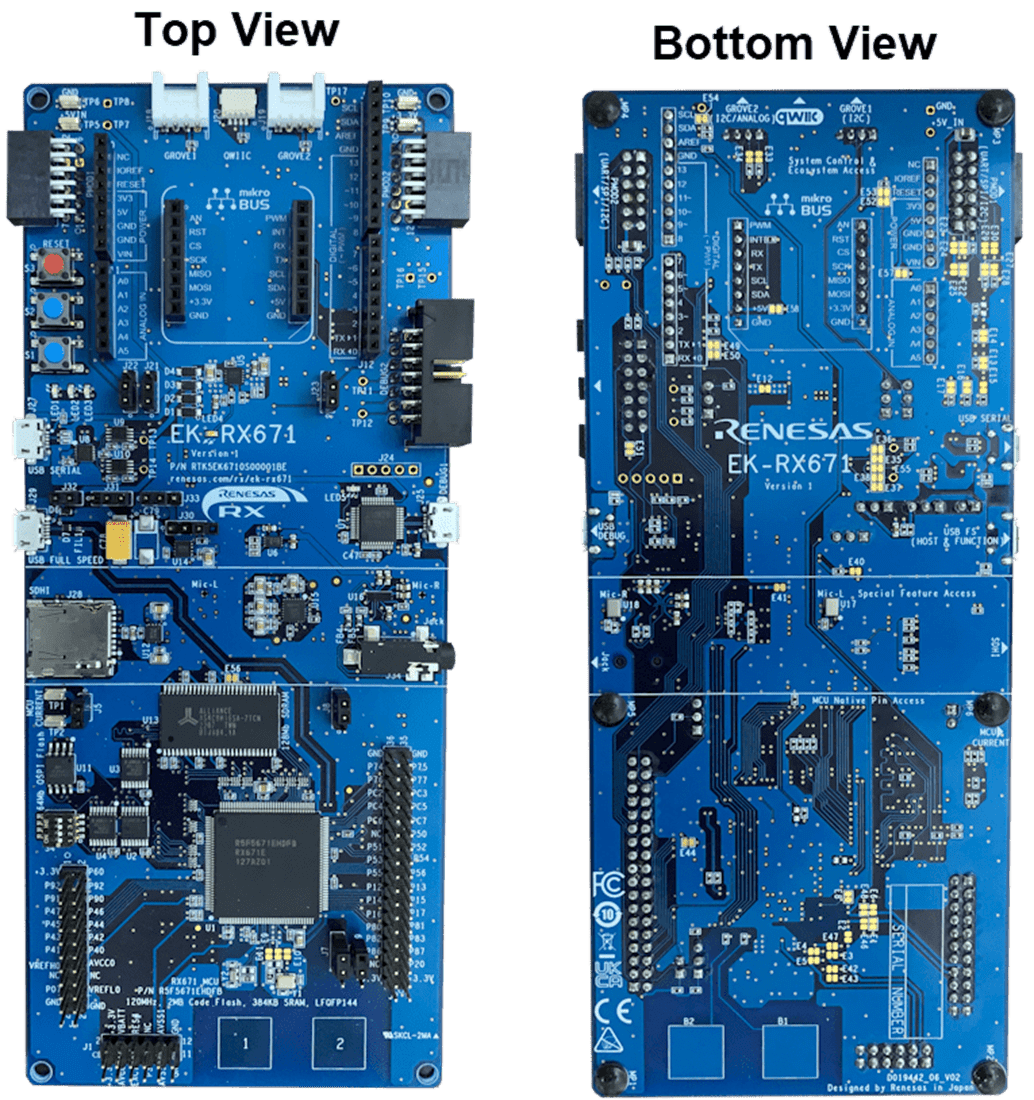

Board Layout
