Renesas Electronics EK-RA2E2 Evaluation Kit

Renesas Electronics EK-RA2E2 Evaluation Kit allows users to evaluate the features of the RA2E2 MCUs. The EK-RA2E2 combined with Renesas’ Flexible Software Package (FSP) and e2 studio IDE develops embedded system applications. The Renesas Electronics EK-RA2E2 Evaluation Kit has rich onboard features to be utilized with a choice of popular ecosystem add-ons.

Features

MCU Native Pin Access
- R7FA2E2A72DNK MCU
- 48MHz, Arm Cortex®-M23 core
- 62KB Code Flash, 8KB SRAM
- 24 pins, HWQFN package
- Native pin access through prototype friendly male headers
- MCU current measurement points
Ecosystem and System Control Access
- Multiple 5V input sources
  - USB (debug)
  - External power supply
- Debug modes
  - Debug on-board (SWD)
  - Debug In (ETM, SWD, and JTAG)
  - Debug Out (SWD)
- User LEDs and buttons
  - Three user LEDs (red, blue, green)
  - Power LED (white) indicating the availability of regulated power
  - Debug LED (yellow) indicating the debug connection
  - Two user buttons
  - One reset button
- Five most popular ecosystem expansions
  - MikroElektronika™ mikroBUS connector
  - SparkFun® Qwiic® connector
  - Two SeeedGrove® systems (I²C and analog) connectors
  - Two Digilent Pmod™ (SPI and UART) connectors
  - Arduino™ (Uno R3) connector
- MCU boot configuration

Kit Contents

EK-RA2E2 board
Micro USB device cable (type-A male to micro-B male)

Required Equipment

Software Requirements
- Windows® 10 operating system
- SEGGER J-Link® USB Serial Drivers
- SEGGER J-Link Real-Time Transfer (RTT) Viewer, virtual terminal emulation application

Hardware Requirements
- EK-RA2E2 board
- Micro USB device cable
- A PC with at least 1 USB port

Renesas Electronics EK-RA2E2 Evaluation Kit

Features

Kit Contents

Required Equipment

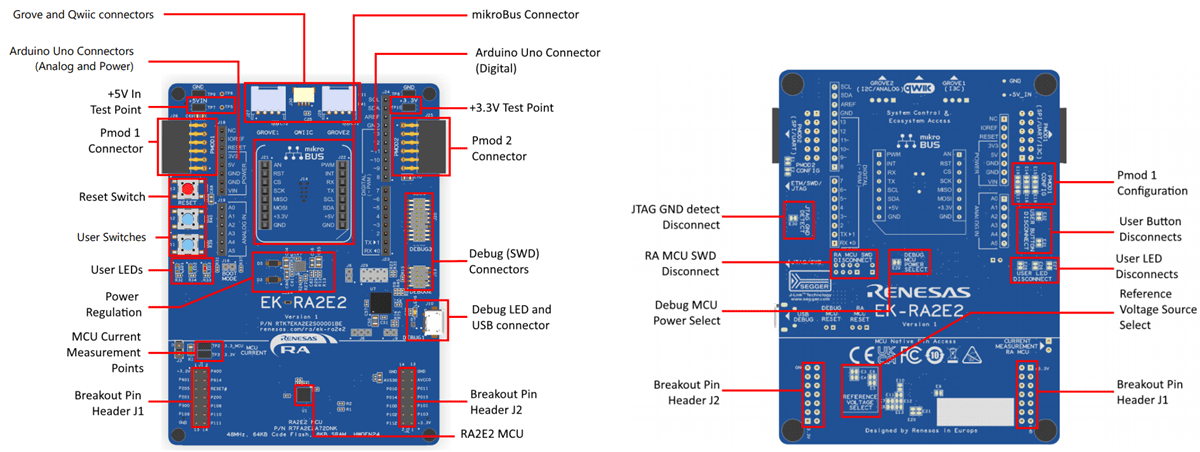

Overview

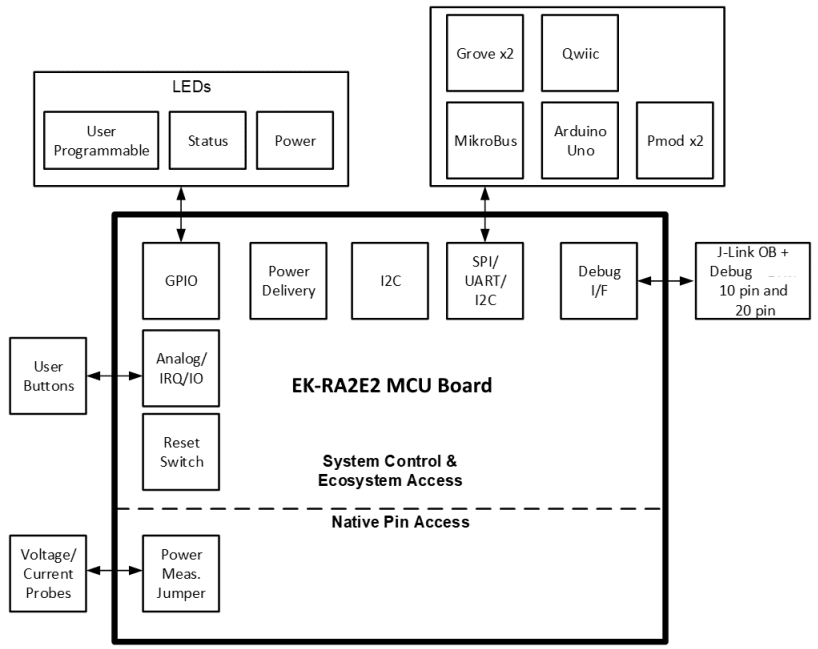

Block Diagram
