Renesas Electronics CK-RX65N V2 Cloud Kit

Renesas Electronics CK-RX65N V2 Cloud Kit enables secure connection to the cloud and explores the features of the Renesas RXv2 core-based RX65N MCUs and cloud services. With Renesas’ RYZ014A LTE Cellular CAT-M1 module or the DA16600 Wi-Fi-BLE module and Ethernet network connectivity options, the kit provides a seamless cloud connectivity experience to global cloud service providers. The kit features complete software stack support using FreeRTOS, Azure RTOS, and other middleware stacks. These stacks make the kit an ideal platform for efficiently developing cloud solutions and reducing time-to-market. The Renesas Electronics CK-RX65N V2 Cloud Kit is Azure IoT plug-and-play certified, and AWS qualified, ratifying reliability.

Features

LTE CAT-M1 with RYZ014A Pmod or Wi-Fi connectivity with the DA16600 Wi-Fi-BLE Pmod
Ethernet
USB full-speed host and device
Sensors
- Humidity and temperature
- Indoor air quality index
- Outdoor air quality index
- Heart rate, blood oxygen saturation (SpO2), and respiration rate
- Barometric pressure
- 9-axis motion tracking with RYZ014A Pmod or 6-axis with the DA16600 Wi-Fi-BLE Pmod
2x MEMS microphones
Battery connector for portability
Arduino™ (Uno R3) connector
USB Type-C power connector with the DA16600 Wi-Fi-BLE Pmod

Onboard MCU
- R5F565NEHDFB microcontroller
- 120MHz, RX v2 core
- 2MB code flash, 640KB SRAM, and TSIP
- 144x pins, LQFP package
Ecosystem
- MCU and Pmod current measurement points
- 5V input through USB or external power supply
- USB-serial converter
- Debug on-board
- 4x user LEDs
- 1x user button
- 2x Digilent Pmod™ (SPI/UART/I²C: Type-6A and Type-2A) connectors

Applications

IoT Cloud solutions
Home and building automation
Smart cities
Healthcare

Industrial monitoring and sensing
Voice command
Smart metering
Asset tracking and location-based services

Kit Contents

CK-RX65N v2 board
RYZ014A PMOD (CAT-M1 cellular module)
Micro USB to A cable

Micro USB A/B to A adapter cable
SIM card
Antenna

Videos

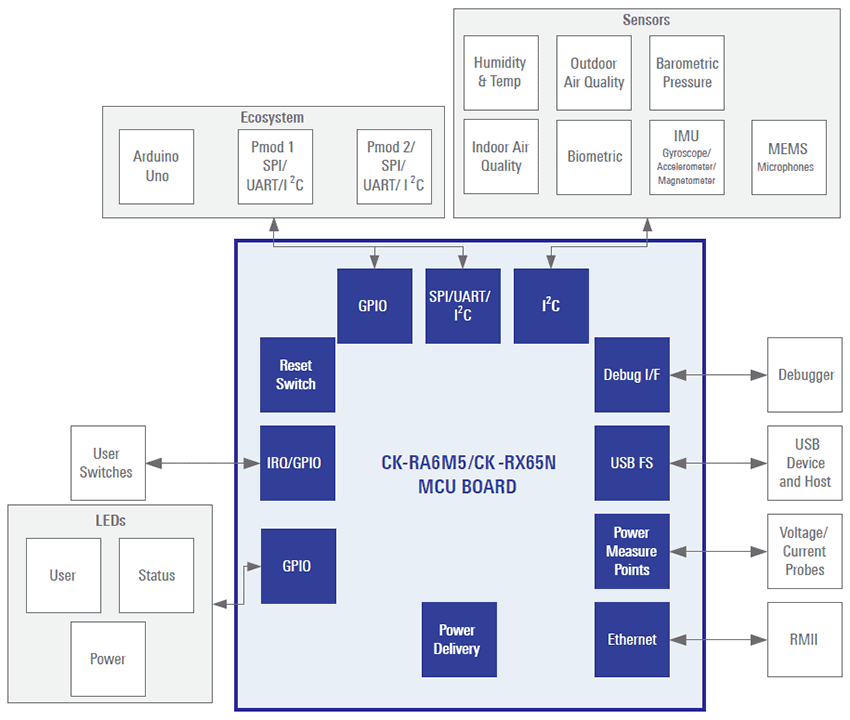

Block Diagram

User Guides

CK-RX65N Quick Start Guide – Cloud Kit for RX65N MCUs
CK-RX65N v2 with DA16600 Pmod Board Quick Start Guide – Cloud Kit for RX65N MCUs
CK-RX65N v2 User’s Manual – Cloud Kit for RX65N MCUs
CK-RX65N Getting Started Guide with RYZ014A Azure Cellular Application

CK-RX65N SIM activation, Creating the trial account, and using Dashboard with RYZ014A or Ethernet Application for AWS – Getting Started Guide
Connecting AWS Cloud with FreeRTOS Getting Started Guide for CK-RX65N

Application Notes

Renesas RA and RX Family of MCUs
How to implement OTA by using Microsoft Azure Services
Azure RTOS Sample Projects using e² studio or IAR EW
Tracealyzer® for FreeRTOS Debugging
Azure RTOS TraceX for Azure RTOS ThreadX Debugging

Examples of Controlling to Low Power Consumption (Intermittent Operation) using LTE Cat-M1 Module (RYZ014A) and FreeRTOS
AWS Dashboard for CK-RA6M5 and CK-RX65N Application Note
