Renesas Electronics CK-RA6M5 Cloud Kit

Renesas CK-RA6M5 Cloud Kit is based on the RA6M5 MCU and features CAT-M1 and Ethernet network connectivity interfaces. The CK-RA6M5 has multiple onboard sensors – temperature, humidity, barometric pressure, SpO2, indoor/outdoor AQI, and 9 Axis MEMS motion tracking. The kit features 2 MEMS microphones, an onboard debugger (J-LINK or E2OB), and an Arduino Uno interface.

Features

Based on RA6M5
CAT-M1 and Ethernet network connectivity interfaces
Multiple onboard sensors – temperature, humidity, barometric pressure, SpO2, indoor/outdoor AQI, and 9 Axis MEMS motion tracking

2 MEMS microphones
Onboard debugger (J-LINK or E2OB)
Arduino Uno interface
2-channel Pmod – type 6A and 2A
USB FS and USB Serial convert port

Applications

Home automation
Building automation
Smart cities
Smart metering

Healthcare
Voice command
Industrial monitoring and control

Kit Contents

CK-RA6M5 v1 board
RYZ014A PMOD (RA CAT-M1 Cloud Kit)
Micro USB to A cable

Micro USB A/B to A adapter cable
Sim Card (RA CAT-M1 Cloud Kit)
Antenna (RA CAT-M1 Cloud Kit)

Edge Impulse Resources

Infographic - Renesas Electronics CK-RA6M5 Cloud Kit

View ’s Edge Impulse Resource Hub
Get started with Edge Impulse

Videos

Block Diagram

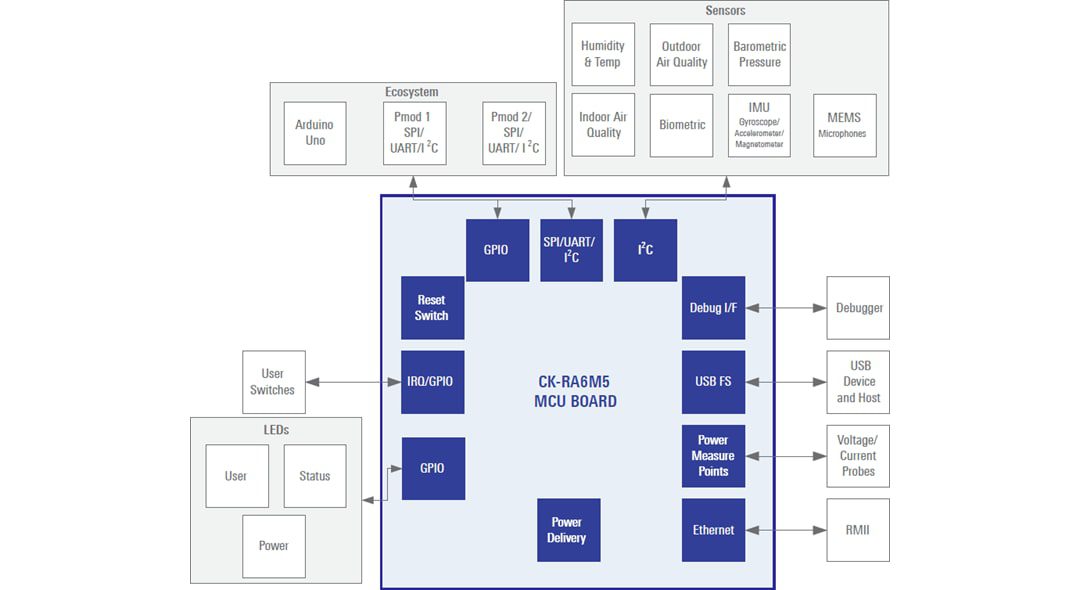

Block Diagram - Renesas Electronics CK-RA6M5 Cloud Kit

Resources

The IoT Cloud Connection Decision: Wi-Fi or Cellular?
User Manual
Quick Start Guide

Application Note
Fact Sheet

Also on the board is the RYZ014A LTE Category M1 Module.
