Renesas / Dialog SLG47004 GreenPAK Mixed-Signal Matrixes

Renesas / Dialog SLG47004 GreenPAK Mixed-Signal Matrixes provide small and low-power components for analog signal processing and mixed-signal functions. These programmable matrixes allow individual, tunable and analog components in conjunction with configurable logic to solve a wide variety of tasks with minimal costs. The SLG47004 matrixes feature an analog temperature sensor, programmable delay with edge detector output, deglitch filter or edge detector, in-system programmability, and multiple-time programmable memory. The circuit is designed by programming multiple-time Non-Volatile Memory (NVM) to configure the interconnect logic, analog and digital macrocell, and IO Pins of SLG47004.

The SLG47004 matrixes operate at the -40°C to 85°C temperature range and 2.5V(±4%) to 5V(±10%) supply voltage range. These matrixes are RoHS compliant and halogen-free. Typical applications include tunable analog filters, operational amplifier adjustable gain and offset, adjustable voltage-to-current conversions, PC peripherals, consumer electronics, and data communications equipment.

Features

Two programmable bandwidth Op-Amp:
- 3 Op-Amp instrumentation amplifier function (including additional internal Op-Amp)
- Rail to rail input
- Low quiescent current
- Low offset voltage
- Analog comparator mode
- Optional V_ref voltage connection for input pins
One low offset chopper comparator
Two 1024 position digital rheostats:
- User-defined auto-trim option
- Manual control option
- I²C control option
- Potentiometer mode
Two single-pole/single-throw analog switches:
- Voltage or current source/sink mode
- One low offset chopper comparator
Three voltage references:
- Two ACMP V_ref output buffers
- One high drive buffer
Thirteen combination function macrocells:
- Three selectable DFF/latch or 2-bit LUTs
- One selectable programmable pattern generator or 2-bit LUT
- Seven selectable DFF/latch or 3-bit LUTs
- One selectable pipe delay or ripple counter or 3-bit LUT
- One selectable DFF/latch or 4-bit LUT

Seven multi-function macrocells:
- Six selectable DFF/latch or 3-bit LUTs + 8-bit delay/counters
- One selectable DFF/latch or 4-bit LUT + 16-bit delay/counter
Serial communications:
- I²C protocol interface
2-kbit (256 x 8) I²C-compatible (2-wire) serial EEPROM emulation with software write protection
Programmable delay with edge detector output
Deglitch filter or edge detector
Three oscillators:
- 2.048kHz oscillator
- 2.048MHz oscillator
- 25MHz oscillator
Analog temperature sensor
Power-on reset
In-system programmability
Multiple time programmable memory
RoHS compliant/halogen-free
Package available:
- 24-pin STQFN:
  - 3mm x 3mm x 0.55mm and 0.4mm pitch

Specifications

-40°C to 85°C operating temperature range
2.5V (±4 %) to 5V (±10 %) supply voltage range
-65°C to 150°C storage temperature range

Applications

Adjust precision threshold
Sensor offset trimming/calibration
Tunable analog filters
Operational amplifier adjustable gain and offset
Adjustable voltage-to-current conversions
Personal computers and servers

PC peripherals
Consumer electronics
Data communications equipment
Handheld and portable electronics
Smartphones and fitness bands
Notebook and tablet PCs

Renesas / Dialog SLG47004 GreenPAK Mixed-Signal Matrixes

Features

Specifications

Applications

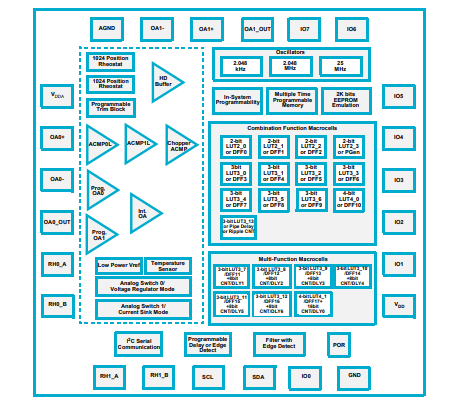

Block diagram

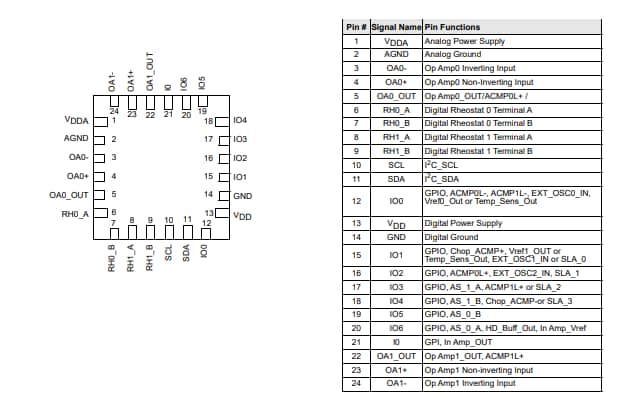

Pin Diagram
