Renesas / Dialog DA16600 Wi-Fi® + BLUETOOTH® Low Energy Modules

Renesas / Dialog DA16600 Wi-Fi® + BLUETOOTH® Low Energy (BLE) Modules provide a convenient way to add both low-power Wi-Fi and low-power BLE functionality to applications. The DA16600 Modules are based on the VirtualZero™ DA16200 Wi-Fi SoC (System on a Chip) and the SmartBond TINY™ DA14531 BLE SoC. Together they deliver long battery life and low power consumption in a convenient form factor. As a single integrated system, functions such as Wi-Fi/BLE coexistence and provisioning Wi-Fi through the BLE connection come standard.

The Renesas / Dialog DA16600 Modules are complete with all required components and are regulatory certified by the FCC, IC, CE, and other regulatory bodies. These compact 14.2mm x 24.6mm x 3.0mm Modules are offered with an onboard chip antenna (DA16600MOD-AAC4WA32) or with a connector for an external antenna (DA16600MOD-AAE4WA32).

Features

  • Low-power Wi-Fi
    • VirtualZero DA16200 SoC
    • 802.11n 1×1 low power 2.4GHz
    • Up to 72Mbps, MCS0-7
  • Low-power BLE
    • SmartBond TINY DA14531 SoC
  • Ultra low power
    • BT5.1 compliant BLE
    • Enables year-plus battery life
    • Breakthrough VirtualZero low power technology
    • Virtually no power consumption in a sleep state
    • Ultra low power sensor wake-up
    • Runs on small batteries and coin cells
  • Wi-Fi/BLE coexistence
    • Built-in, customizable, coexistence algorithms
  • Superior range
    • Wi-Fi: Industry-leading output power and Rx sensitivity for maximum range
    • BLE: 4x range of BT 4.0
  • Simple setup and provisioning
    • Provision Wi-Fi connection simply with BLE
    • Automatically find and configure new devices with a smartphone app
  • Full offload
    • SoC runs a full OS and TCP/IP stack on the module
  • Complete software stack
    • Comprehensive networking software stack
  • Leading security
    • Secure boot
    • Secure debug
    • Secure asset storage
    • Hardware accelerated
    • TLS
    • Digital certificates
    • Elliptic curve
  • OTA firmware update
    • Enables field-deployed device firmware updates
  • Antenna options
    • Onboard chip antenna
    • External antenna connector (u.FL)
  • Multiple I/Os
    • UART, SPI, ADC, I2C, PWM, I2S, GPIOs, JTAG, and SWD

Applications

  • Thermostats
  • Door locks
  • Security cameras
  • Video doorbells
  • Temperature sensors
  • Smoke detectors
  • Other wireless sensors
  • Garage door openers
  • Pet trackers
  • Asset trackers
  • Home automation
  • Commercial
  • Industrial
  • Residential

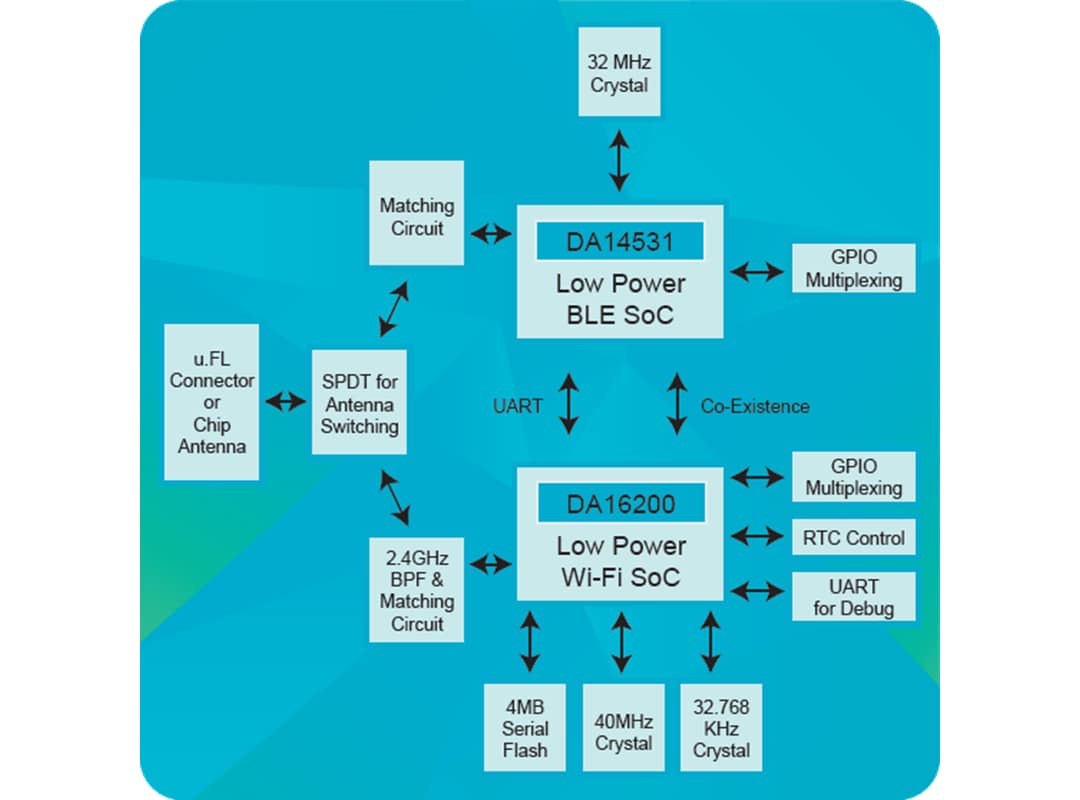

Block Diagram

Block Diagram - Renesas / Dialog DA16600 Wi-Fi® + BLUETOOTH® Low Energy Modules
