Renesas / Dialog DA16200MOD-AAx Ultra-Low Power Wi-Fi Modules

Renesas / Dialog DA16200MOD-AAx Ultra-Low Power Wi-Fi Modules feature DA16200 SoC, 4MB flash memory, RF components, and either a chip antenna or connector for an external antenna. The RF components include a crystal oscillator and an RF lumped filter. These Wi-Fi modules deliver long battery life, and low power consumption and are certified by the FCC, IC, IE, and other regulatory bodies. The DA16200MOD-AAx Wi-Fi modules include a comprehensive networking software stack, secure boot, secure debug, and secure asset storage.

The DA16200MOD-AAx Wi-Fi modules operate at 2.1V to 3.6V voltage range and operate at -40°C to 85°C temperature range. Typical applications include thermostats, security cameras, video doorbells, smoke detectors, asset trackers, home automation, industrial and commercial applications, temperature, and wireless sensors.

Features

Advanced Security:
- Secure booting
- Secure asset storage
- Secure debugging using JTAG/SWAD and UART ports
Supports various interfaces:
- eMMC/SD expanded memory
- SDIO host/slave function
- Three UARTs
- SPI master/slave interface
- I²C master/slave interface
- 4-channel PWM
- I²S for digital audio streaming
- JTAG and SWD
- Individually programmable, multiplexed GPIO pins
- QSPI for external flash control
Built-in 4 channel auxiliary ADC for interfaces:
- Dynamic auto-switching function
- 12bit SAR ADC single-ended four channels

Complete software stack:
- Comprehensive networking software stack
- Provides TCP/IP stack
Hardware accelerators:
- General HW CRC engine
- HW zeroing function for fast booting
- Pseudo-Random Number Generator (PRNG)
Built-in-4-channel auxiliary ADC for sensor interfaces:
- Provides dynamic auto-switching function
- 12bit SAR ADC: single-ended four channels
Power management unit:
- On-chip RTC
- Supports three ultra low power sleep modes
- Wake-up control of fast booting or full booting with minimal initialization time
Built-in hardware crypto engines for advanced security

Applications

Thermostats
Door locks
Security cameras
Video doorbells
Temperature sensors
Smoke detectors
Other wireless sensors

Garage door openers
Pet trackers
Asset trackers
Home automation
Industrial
Commercial
Residential

Specifications

2.1V to 3.6V supply voltage range
73Mb/s data rate
Best RF performance:
- 19dBm, 1Mbps DSSS Tx power
- -98.5dBm, 1Mbps DSSS RX sensitivity

32.768kHz frequency
13.8mm x 22.1mm x 3.3mm board dimensions
-40°C to 85°C operating temperature range
32M-bit/4M-byte SPI flash memory

Block Diagrams

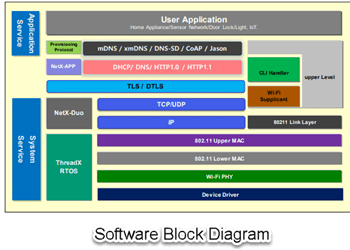

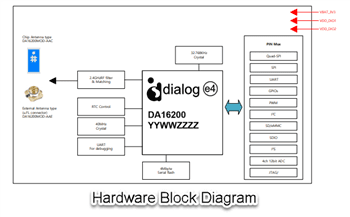

Block Diagram - Renesas / Dialog DA16200MOD-AAx Ultra-Low Power Wi-Fi Modules

Renesas / Dialog DA16200MOD-AAx Ultra-Low Power Wi-Fi Modules

Features

Applications

Specifications

Block Diagrams

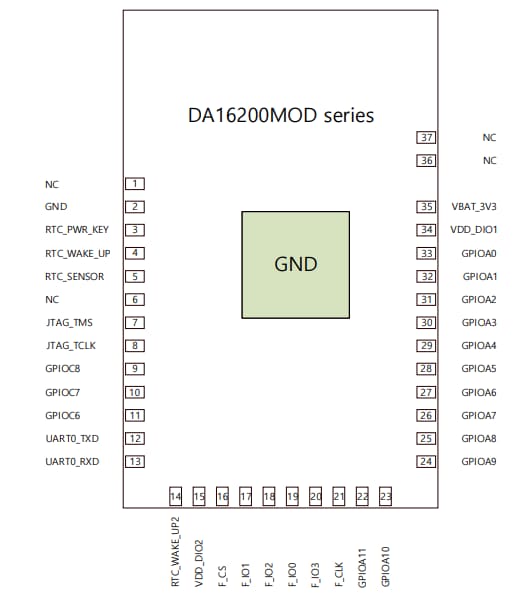

Pinout Diagram
