Renesas / Dialog DA14531 SmartBond TINY™ Module Development Kit includes a motherboard, daughterboard, and cables. This development kit is implemented on a single Daughterboard (DB) PCB and comes with DA145xx DEVKT-P PRO-MB designed for SW development, programming, debugging, and power measurements.

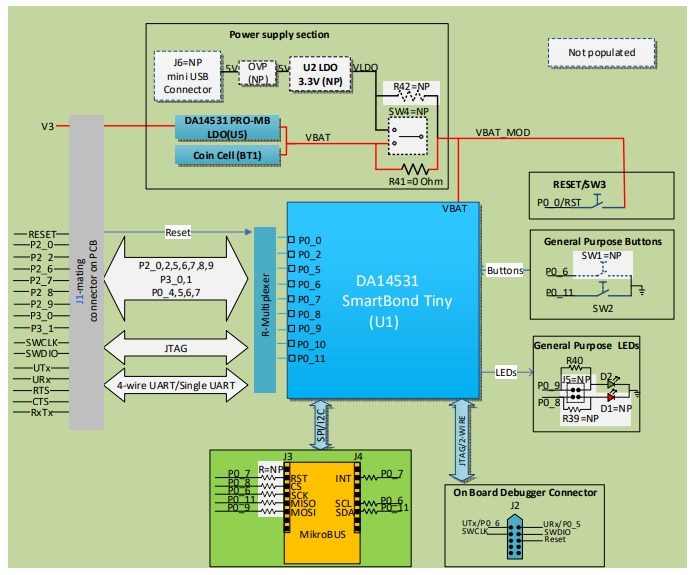

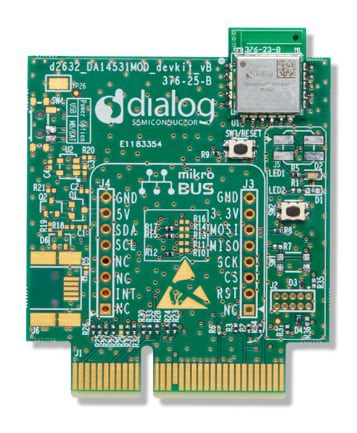

The DA14531 daughterboard features an integrated Renesas / Dialog DA14531 SmartBond TINY™ module. The DA14531 SmartBond TINY™ module DB has the capability of mounting a MikroBUS™ module. This DA14531 daughterboard comes in 58.43mm x 44.46mm dimensions.
SmartBond Done in a Day™ Kit is the simplest and fastest way to transform products with the help of Bluetooth® Low Energy wireless connection. This kit is highly integrated, pre-certified, and comes with a low-cost solution. The Done in a Day™ kit connects wirelessly to a smartphone for monitoring/control. This Done in a Day™ kit includes DA14531 Module Pro Development Kit/Preview and 3 complimentary DA14531 module samples. The SmartBond DID kit comes with 3 session webinars that include Introduction, Step-by-step to your PoC, and PoC to Production webinars.
Webinar 1: Introduction
Webinar 2: Step-by-Step to your PoC
Webinar 3: PoC to production
