ReFLEX CES Sargon Stratix® 10 GX Development Kit

ReFLEX CES Sargon Stratix® 10 GX Development Kit provides out of the box experience with best in class compact hardware platform and efficient intuitive software environment. This development kit operates from 0°C to 40°C temperature range and is available with board dimensions of 254mm x 111.5mm. The Stratix development kit is targeted for markets including high-performance computing, IP, and ASIC prototyping.

Features

  • 0°C to +40°C operating temperature range
  • 254mm x 111.5mm board dimensions
  • Dual slot PCIe
  • 240W maximum power supply

Kit Contents

  • Sargon Stratix® 10 GX FMC + DevKit
  • Power adapter (US, UK, EU, and JP) and micro USB 2.0 cable
  • PDF documentation
  • FMC interface control excel sheet
  • Board test design files available under FTP after the creation of a user account
  • Quartus Prime Pro DKE
  • Mechanical files (DWF/STEP models and 2D drawing)

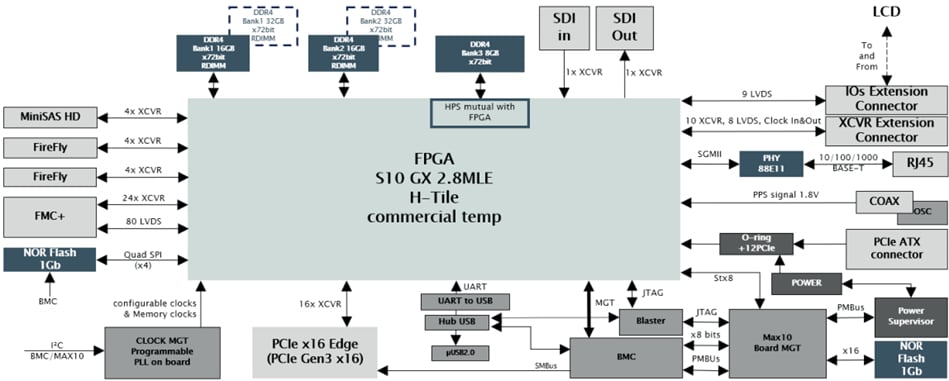

Block Diagram

Block Diagram - ReFLEX CES Sargon Stratix® 10 GX Development Kit
