Rectron P6KE GPP Transient Voltage Suppressor Diodes

Rectron P6KE GPP (Glass Passivation Pellet) Transient Voltage Suppressor Diodes feature excellent clamping capability, low Zener impedance, and fast response time. These diodes operate at 600W peak power dissipation at 1ms, 5W steady-state power dissipation (P_M(AV)), and 100A peak forward surge current (I_FSM).

Features

Glass passivated chip construction
Excellent clamping capability

Low Zener impedance
Fast response time

Specifications

600W peak power dissipation at 1ms
5W steady-state power dissipation (P_M(AV))

100A peak forward surge current (I_FSM)
-55°C to 150°C operating temperature range

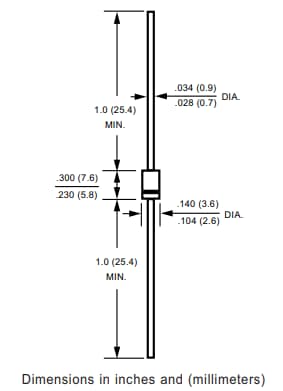

Dimensions Diagram

Mechanical Drawing - Rectron P6KE GPP Transient Voltage Suppressor Diodes

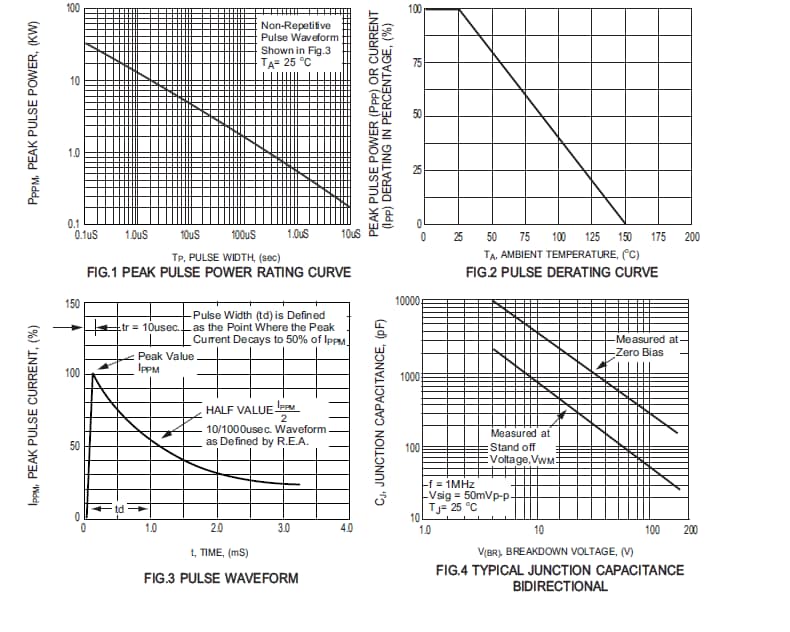

Characteristic Curves

Performance Graph - Rectron P6KE GPP Transient Voltage Suppressor Diodes
