RECOM Power RSOE/RSE Isolated DC/DC Converters

RECOM Power RSOE/RSE Isolated DC/DC Converters feature 2:1 or 4:1 wide input range, low cost isolated, regulated, and short-circuit protection. The converters include SIP8 compact case size, 2kVDC second isolation, and 5V output voltage. These isolated converters offer 1.5mA maximum standby current, 1GΩ minimum isolation resistance, and 100pF maximum isolation capacitance. The RSOE/RSE converters operate at 105°C maximum case temperature, 5000m altitude, PD2 pollution degree. These isolated converters provide industrial class A EMC levels that can be met with simple Pi-filters.

Features

SIP8 industry-standard pinout
2:1 or 4:1 wide input range
Low cost
EN/UL62368 and UL60950 certified

Short-circuit protected
CB report
PD2 pollution degree

Specifications

RSE:
- 2W output power
- 400mA output current
- -40°C to 75°C operating temperature range
RSOE:
- 1W output power
- 200mA output current
- -40°C to 80°C operating temperature range
4.5V to 18V input voltage range
2kV isolation voltage

5V output voltage
1GΩ minimum isolation resistance
100pF maximum isolation capacitance
105°C maximum operating case temperature
5000m operating altitude

RECOM Power RSOE/RSE Isolated DC/DC Converters

Features

Specifications

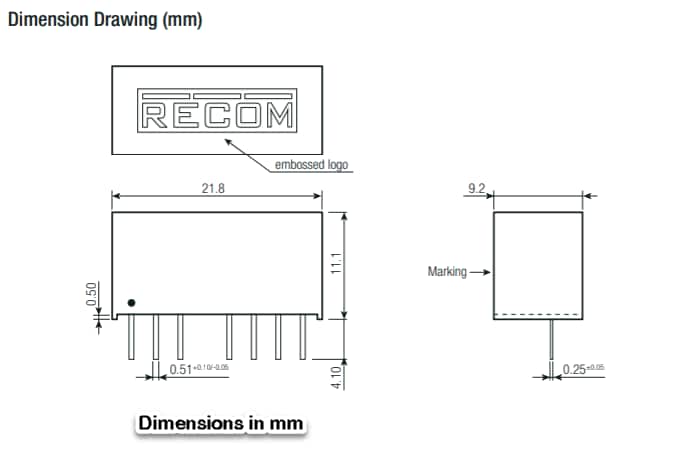

Mechanical Drawing
