RECOM Power RPxx-RAW Series DC-DC Converters

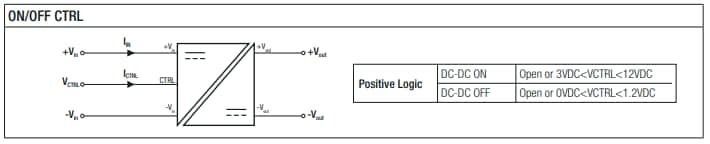

RECOM Power RPxx-RAW Series DC-DC Converters offer an ultra-wide 4:1 input range of 36V_DC to 160V_DC and a 3kV_AC/1min reinforced isolation rating. These converters feature remote on/off, input undervoltage lockout and overvoltage, short-circuit, and overload relay protection. RPxx-RAW converters are suitable for 72V_DC, 96V_DC, and 110V_DC railway systems and are also built for non-railway high-voltage battery applications. RECOM Power RPxx-RAW Series DC-DC Converters are available in an industry-standard, compact DIP24 package and operate in a -40°C to +105°C temperature range.
