RECOM Power RMOD400 & RMOD600 DC/DC Converters

RECOM Power RMOD400 and RMOD600 DC/DC Converters are robust plug-and-play modules that generate the low voltage network from a vehicle’s traction battery. These DC/DC converters are chassis-mounted, base-plate-cooled, and deliver full power at an ambient temperature of up to 85°C. The RMOD400 and RMOD600 DC/DC converters feature high power density and parallel operation without active current sharing. These DC/DC converters are water and dust-proof (IP69K), RoHS-compliant, and REACH-compliant. Typical applications include railway, traction systems, HVAC, radio communications, lighting systems, information systems, door control, and driver desk displays.

Features

On-board DC/DC converter
Plug-and-play and ready-to-use
Chassis mount and base plate cooled
High and extremely constant efficiency

Parallel operation without active current sharing
High power density
Full power at an ambient temperature of up to 85°C
Water and dust-proof (IP69K), robust, and reliable

Specifications

RMOD400:
- 150ms typical start-up time
- 50ms maximum rise time
- 22A maximum input current
- 1.5A²s maximum inrush current
- -35°C to 85°C operating ambient temperature range
- IP69K IP rating
- 203mm x 115mm x 61mm dimensions

RMOD600:
- 300ms typical start-up time
- 100ms typical rise time
- 32A maximum input current
- 1.5A²s maximum inrush current
- -35°C to 85°C operating ambient temperature range
- IP69K IP rating
- 203mm x 115mm x 71mm dimensions

Applications

Railway and traction systems
HVAC
Radio communications
Lighting systems

Information systems
Door control
Driver desk displays
E-mobility and industry vehicles

RECOM Power RMOD400 & RMOD600 DC/DC Converters

Features

Specifications

Applications

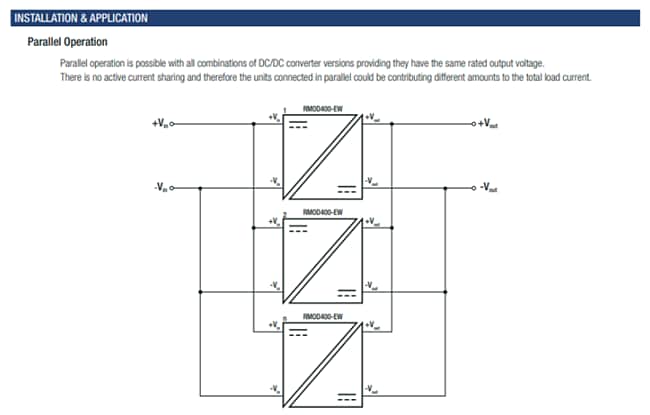

Installation & Application
