RECOM Power REC5K-RW Isolated DC-DC Converter

RECOM Power REC5K-RW Isolated DC-DC Converter offers 4kVDC/1s isolation and internal filtering to reduce noise, which is ideal for industrial applications. High power density without compromised performance is achieved due to this converter’s compact DIP24 non-conductive plastic packaging. There are many protection features, including short circuit and undervoltage, and remote on/off is standard, and these converters are certified according to UL/IEC/EN62368-1. RECOM Power REC5K-RW Isolated DC-DC Converter is suitable for industrial automation, test and measurement, telecom, home automation, and energy applications.

Features

  • Low ripple and noise
  • On/Off control pin
  • Undervoltage protection
  • Short-circuit protection
  • 0% minimum load
  • Wide 4:1 input

Applications

  • Industrial and automation
  • Building and home automation
  • Energy
  • Distributed power architecture
  • Communication interface
  • Test and measurement
  • Datacom and telecom

Specifications

  • 4kVDC/1s isolation
  • Industry-standard 5W DIP24 package
  • Derates to +110°C ambient temperature
  • 32.1mm x 20.6mm x 10.2mm dimensions
  • 9VDC to 36VDC input voltage range
  • UL/IEC/EN62368-1 certified
  • 1000mA output current
  • 5VDC output voltage
  • 78% typical efficiency
  • 3000μF capacitive load
  • -40°C to +100°C operating temperature range

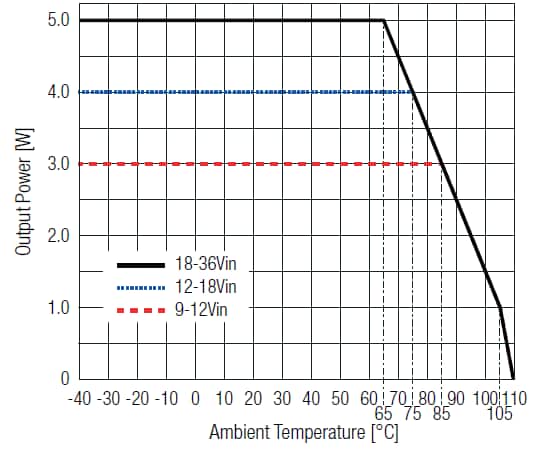

Derating Graph

RECOM Power REC5K-RW Isolated DC-DC Converter

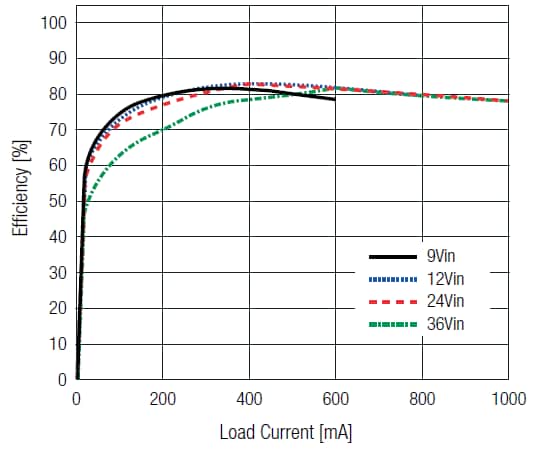

Efficiency Graph

RECOM Power REC5K-RW Isolated DC-DC Converter
