RECOM Power RACM60-K/OF 60W Open-Frame AC/DC Converters

RECOM Power RACM60-K/OF AC/DC Converters are 2″ x 3″ medical-grade, open-frame AC/DC converters that provide 4kV_AC/1min reinforced isolation. They have an ambient operating temperature range of -40°C up to +55°C and up to +85°C with derating. The converters are highly efficient, with a rating of 90% and typical no-load power consumption of 100mW. They are also available in a PCB mountable version. RECOM Power RACM60-K/OF modules are multifaceted, meeting medical certifications as well as household and industrial safety standards. These converters are ideal for a wide variety of applications.

Features

60W in open-frame package
2″ x 3″ or 2″ x 4″ package
4kV_AC/1min isolation
2MOPP certified
Built-in Class B EMC filter

Applications

Medical monitors and measurement equipment
Industrial Internet of Things (IIoT)
Household equipment
Building management equipment
Enclosed devices lacking air ventilation

RECOM Power RACM60-K/OF 60W Open-Frame AC/DC Converters

Features

Applications

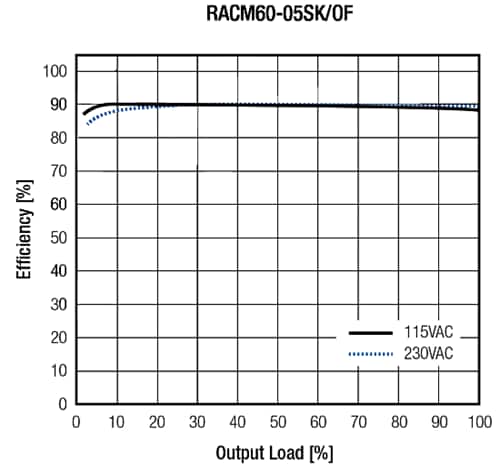

Efficiency Vs. Load

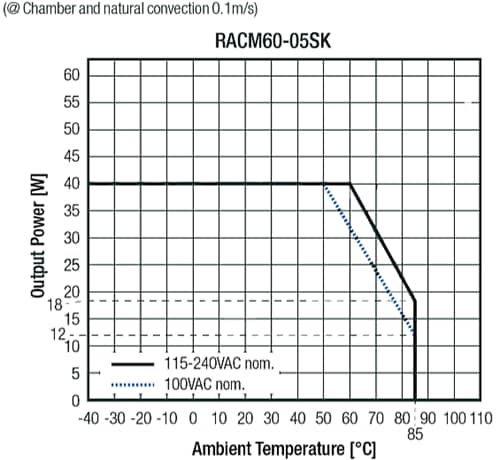

Derating Graph
