RECOM Power RACM60-K 60W Multi-Purpose AC/DC Converters

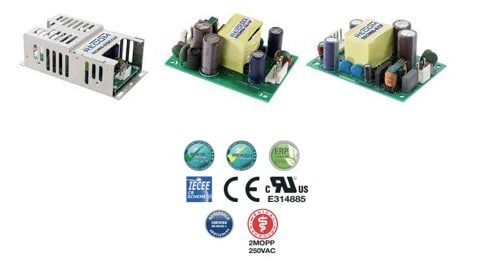

RECOM Power RACM60-K 60W Multi-Purpose AC/DC Converters are 2″ x 3″ compact modules designed to gain the highest overall efficiency levels from universal AC inputs over the entire output load. The multi-purpose, industrial + household + medical grade AC/DC converters deliver 60W of output power from -40°C to +55°C with natural air convection only and up to +85°C with derating or forced cooling.

The RACM60-K/OF features ANSI/AAMI/IEC 60601-1 medical safety and EN 60601-1-2 medical EMC certifications. This device offers 4kVAC/1 minute isolation, 2MOPP, designed to meet B and BF requirements, and is additionally certified to IEC/EN62368-1(CB Report) and IEC61558-1/-2-16 for industrial applications and IEC/EN60335-1 for household appliances. A robust built-in Class B EMC filter with sufficient margin allows Installation Class II or Class I PELV with grounded output.

A range of mechanical fixing options makes the RACM60 devices suitable for many different mounting conditions: the standard chassis mount part mates with Molex connectors, a PCB option permits direct installation in printed circuit boards, and a 2” x 4” footprint for backward compatibility with legacy designs is available on request.

Features

Input voltage ranges from 80V_AC to 264V_AC or 80V_AC to 305V_AC
Overvoltage category (OVC) III
Built-in Class B EMC filter
2MOPP medical certified B and BF compliant
4000/5000m (medical/ITE) operating altitude
Open-frame or enclosed options
Pi-type internal input filter

Short-circuit, overvoltage, output reverse voltage, and overcurrent protection
Class II equipment
Reinforced insulation grade
Pollution degree (PD) 2
3-year warranty
RoHS, REACH, and ERP compliant

Applications

Industrial
Household
Medical

Specifications

Input voltage ranges
- 80V_AC to 264V_AC
- 80V_AC to 305V_AC
- 100V_AC to 277V_AC nominal at 50/60Hz
5V_DC to 48V_DC output voltage range
1250mA to 8000mA output current range
40W or 60W output power options
89% to 90% typical efficiency
500mA to 1400mA maximum input current range
30A to 70A inrush current range
100mW to 120mW typical no-load power consumption range
47Hz to 63Hz input frequency range
0% minimum load
0.45 to 0.6 power factor range
100kHz typical internal operating frequency
200mVp-p maximum output ripple and noise

Time
- 150ms typical start-up
- 100ms typical rise
- 12ms to 70ms minimum hold-up
±1.0% to ±3.0% typical output accuracy range
±0.05% to ±0.5% typical line regulation range
±0.1% to ±3.0% typical load regulation
3.0% or 500µs maximum transient response
+130°C thermal shutdown, restart after cool down
4kVAC isolation voltage (safety certified)
1GΩ minimum isolation resistance
100pF maximum isolation capacitance
-40°C to +85°C operating temperature range
±0.025/K temperature coefficient
95% maximum operating humidity, non-condensing
UL 94V-0 FR4 PCB
