RECOM Power RACM15E-K AC/DC Power Supply

RECOM Power RACM15E-K AC/DC Power Supply features various connection and mounting criteria, including open card placement and panel/DIN-mount enclosures. The power supplies offer constant voltage (CV) and constant current (CC) regulated output voltages from 3.3V_DC to 30V_DC. The RECOM Power RACM15E-K AC/DC Power Supply delivers a 15W overcurrent limited power, and all models meet EN55032 Class “B” EMI guidelines in floating load configurations. The RACM15E-K series complies with several international certifications, including RoHS and REACH compliance. The power supplies are ideal for home, building, and industrial automation as well as datacom, medical, energy, and e-mobility applications.

Features

Panel- and DIN-mount or open card fixation
CV / CC limited
OVC III rated up to 3000m altitude
2MOPP rating; BF ready

1.5U cabinet space requirements
EN55032 class “B” compliant at floating load
3-year warranty
RoHS/REACH compliant

Applications

Building automation
Home automation
Datacom and telecom
Medical
Energy

Industrial automation
Infrastructure
Intralogistics
E-mobility
Test and measurement

Specifications

100V_AC to 240V_AC nominal input voltage
80V_AC to 275V_AC operating range
200mA to 450mA input current range
47Hz to 63Hz input frequency range

70kHz internal operating frequency
150mV_p-p output ripple and noise
-40°C to +85°C operating ambient temperature range

RECOM Power RACM15E-K AC/DC Power Supply

Features

Applications

Specifications

Block Diagram

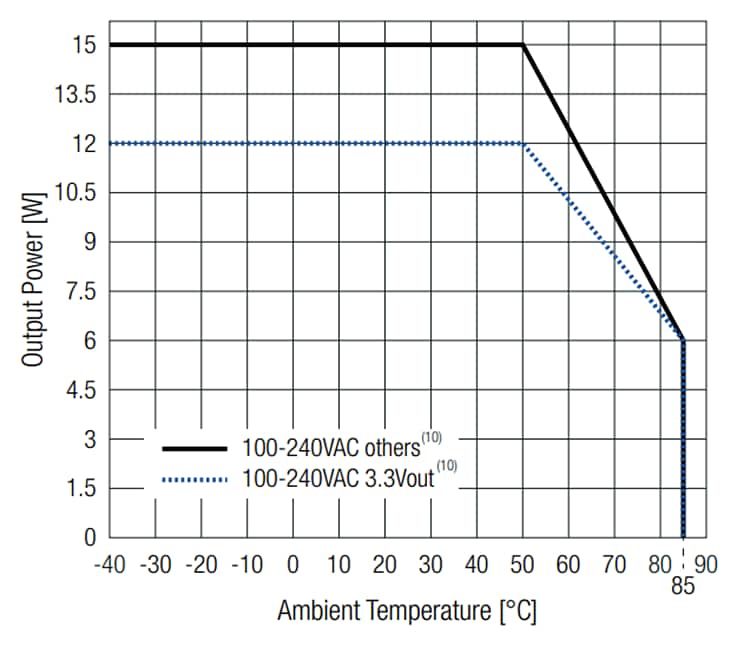

Derating Graph

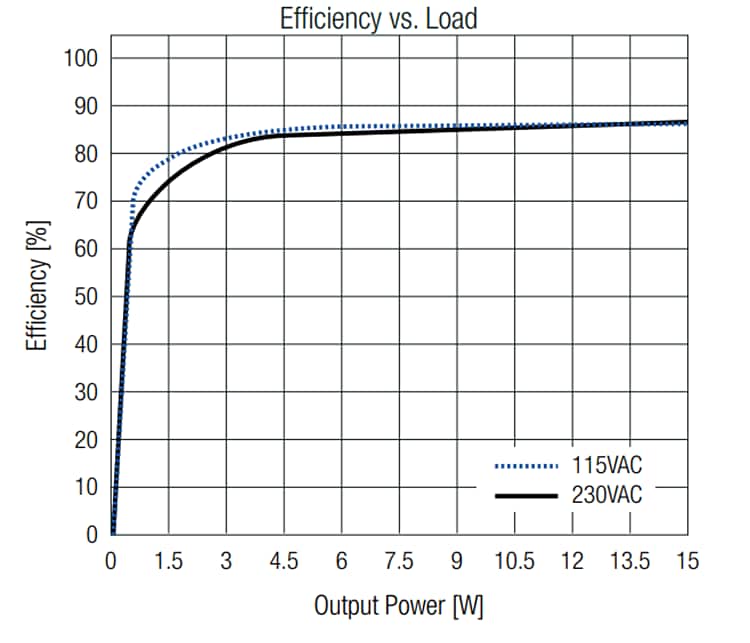

Efficiency vs. Load Graph
