RECOM Power RACM1200-V Regulated Converters

RECOM Power RACM1200-V Regulated Converters feature a special baseplate cooled design that supports heat transfer, allowing up to 1000W of continuous output power. These converters offer a 24V_DC to 56V_DC output voltage range, 50A maximum output current, and up to 95% efficiency. The RACM1200-V series has a wide output voltage adjustment range and a combination of constant current limitation and hiccup mode setting, giving it a multi-purpose design. RECOM Power RACM1200-V Regulated Converters are certified to industrial and medical standards.

Features

Designed and manufactured in Europe
Efficiency according to 80 Plus Platinum Limits
2MOPP

Certified to industrial and medical standards
Analog control and monitor function

Applications

Medical equipment
Industrial equipment
Charging

Robotics
Laser equipment

Specifications

Up to 1000W fanless power / 1200W boost
Up to 95% efficiency
3.8″ x 9″ x 1.5″ enclosed package
85V_AC to 264V_AC input voltage range

24V_DC to 48V_DC output voltage factory set
25A to 50A output current
4kV_AC/1min isolation (input to output)
-40°C to +80°C operating temperature range

RECOM Power RACM1200-V Regulated Converters

Features

Applications

Specifications

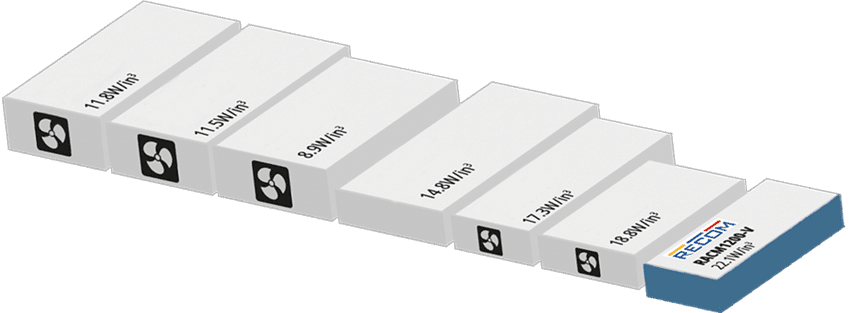

Compact Design

Videos

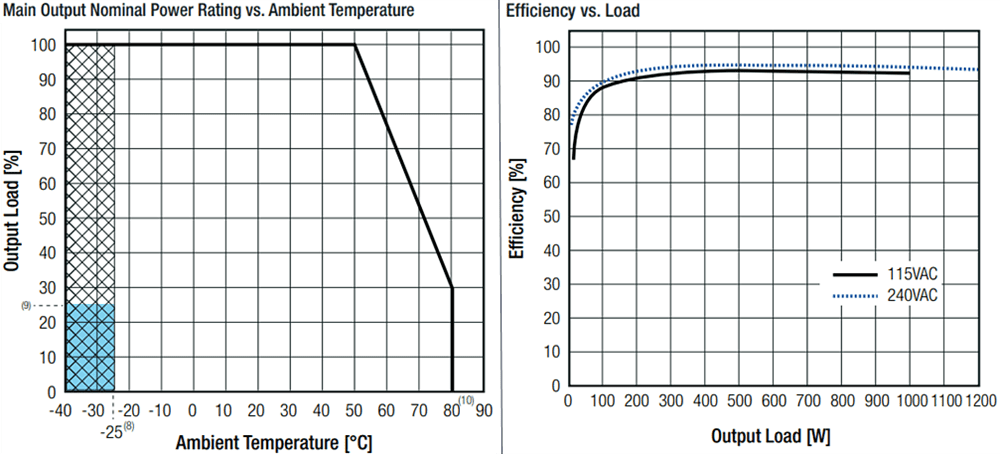

Performance Graphs

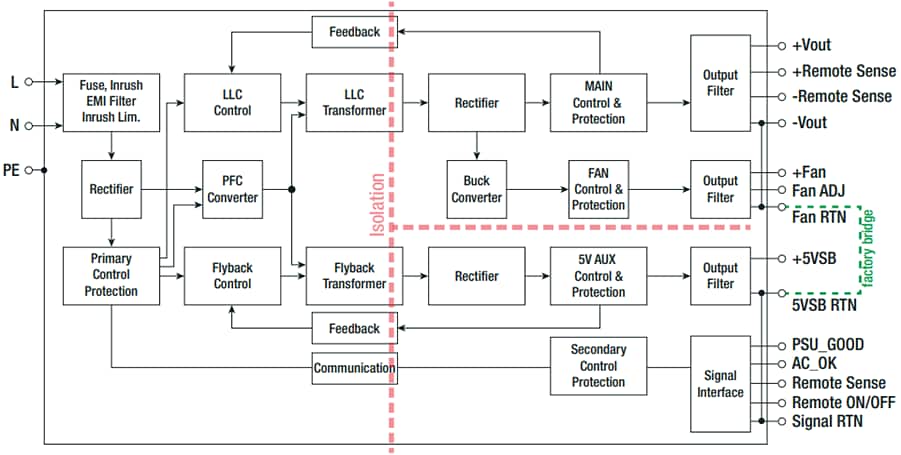

Block Diagram
